DIP Assembly Line Solution for Automotive Electronics

Modern vehicles contain a wide range of electronic modules, and many of these PCB assemblies combine both surface-mount and through-hole components.

SMT technology is widely used for compact ICs, passive components, controllers, sensors, and other high-density electronics. However, automotive PCBAs may also contain components such as:

Connectors
Pin headers
Relays
Terminal blocks
Large capacitors
Inductors
Transformers
Switches
Selected power components

These components can require a DIP/THT assembly process after SMT production.

A typical mixed-technology manufacturing flow may be:

Solder Paste Printing → SPI → SMT Placement → Reflow → AOI → THT Insertion → Wave/Selective Soldering → Inspection → Testing

For automotive electronics manufacturers, configuring the correct DIP assembly line requires more than purchasing a wave soldering machine.

PCB design, BOM, THT component structure, production capacity, product mix, soldering method, testing, traceability, and factory layout should all be considered.

This guide explains how to configure a practical DIP/THT assembly line solution for automotive electronics manufacturing.

What Is a DIP Assembly Line?

A DIP assembly line is a production system used to prepare, insert, solder, inspect, and test through-hole components.

Technically, DIP means Dual In-line Package, while THT means Through-Hole Technology.

THT is the broader and more technically accurate term for components whose leads pass through holes in the PCB.

However, electronics factories commonly use terms such as:

DIP assembly
DIP line
DIP production line

to describe the broader through-hole assembly process.

Therefore, an automotive “DIP line” will often process many THT components that are not technically DIP packages.

Why Is THT Still Used in Automotive Electronics?

Automotive electronics have become increasingly compact, making SMT the dominant assembly technology for many PCB components.

However, SMT does not eliminate the need for THT.

Through-hole mounting may remain useful for components such as:

Large connectors
Mechanically loaded interfaces
Terminal blocks
Relays
Large capacitors
Magnetic components
Selected power devices

For certain components, leads passing through the PCB can provide additional mechanical support.

However, THT should not be described as universally stronger or more reliable than SMT. The correct mounting method depends on the component, PCB design, mechanical requirements, electrical requirements, and manufacturing process.

Automotive Electronics That May Use THT Assembly

THT components may appear in PCBAs used for:

Body control
Lighting systems
Power distribution
Battery management
Charging systems
Motor control
Infotainment
Instrument clusters
HVAC control
Communication modules
Seat and door control
Auxiliary electronic systems

The exact assembly process varies significantly between products.

For this reason, a DIP line should be configured from the actual PCB and BOM rather than from a generic automotive equipment list.

Typical Automotive SMT + DIP Production Process

A complete mixed-technology PCBA process may include:

PCB Loading → Solder Paste Printing → SPI → SMT Placement → Reflow → AOI → THT Component Preparation → THT Insertion → Pre-Solder Inspection → Wave/Selective Soldering → Post-Solder Inspection → Testing

Depending on the product, downstream processes may also include:

Programming
Conformal coating
Final assembly
Additional functional testing
Traceability recording

Not every automotive PCBA requires all of these processes.

Step 1: Complete SMT Assembly

For mixed SMT/THT boards, SMT production is typically completed before THT insertion.

A typical SMT line includes:

PCB Loader → Automatic Solder Paste Printer → SPI → Pick and Place Machine(s) → Reflow Oven → AOI → PCB Unloader/Buffer

SMT equipment should be selected according to:

PCB dimensions
BOM
Component packaging
Feeder requirements
Placement accuracy
Target output
Product mix

After SMT assembly and inspection, boards can enter the DIP/THT production area.

Step 2: Prepare THT Components

Automotive THT components may arrive in:

Tubes
Trays
Tape
Bulk packaging
Custom packaging

Some components may require:

Lead cutting
Lead forming
Bending
Straightening
Kitting

Component preparation is sometimes overlooked during line planning.

However, if preparation cannot supply components at the required rate, it can become the first bottleneck in the DIP line.

Step 3: Classify Components by Insertion Method

Before selecting automation equipment, divide the THT BOM into different groups.

Suitable for Manual Insertion

Manual insertion can be practical for:

Large components
Irregular components
Low-volume parts

Components with complex handling requirements

Suitable for Semi-Automatic Processing

Semi-automatic workstations may support:

Component presentation
PCB positioning
Visual work instructions
Process confirmation

This can improve operator efficiency while preserving flexibility.

Potentially Suitable for Automatic Insertion

Selected standardized THT components may be candidates for automatic insertion when their:

Geometry
Packaging
Lead structure
Orientation
Production volume
support automation.

Not every automotive THT component should be automated.

A hybrid approach is often more practical.

Step 4: Configure the THT Insertion Area

The insertion area should be designed according to component quantity and target takt time.

A typical workstation may include:

ESD workbench
Component bins
Material racks
PCB conveyor
Work instructions
Lighting
Tooling

Component verification systems where required

Good workstation design can reduce:

Operator movement
Component searching
Insertion mistakes
Cycle-time variation

For manual assembly, ergonomics and material presentation can have a significant impact on output.

Step 5: Pre-Solder Inspection

Before soldering, the PCB should be checked for assembly errors.

Typical inspection items include:

Missing components
Incorrect components
Polarity
Orientation
Component seating
Bent leads
Insertion depth
Component position

This is particularly important for components where orientation matters.

Detecting errors before soldering generally reduces downstream rework.

Step 6: Choose Wave or Selective Soldering

One of the most important decisions is the soldering process.

The two main automated options are:

Wave Soldering and Selective Soldering

The correct choice depends primarily on PCB design and THT joint structure.

Wave Soldering for Automotive PCB Assembly

Wave soldering can be efficient when:

Many THT joints are present
The PCB underside supports wave contact
Continuous production is required
Product volume justifies the process

A typical process includes:

Fluxing → Preheating → Wave Soldering → Cooling

Important parameters include:

Flux coverage
Preheat
Solder temperature
Conveyor speed
Wave stability
PCB orientation
Contact conditions

There is no universal wave soldering recipe suitable for every automotive PCB.

Selective Soldering for Automotive Electronics

Selective soldering processes only programmed joints or regions.

It can be useful when:

THT joints are localized
Bottom-side SMT components are present
Certain PCB areas should avoid broad solder exposure
PCB geometry limits wave soldering
Product mix is high

A typical selective soldering process includes:

Selective Fluxing → Preheating → Programmed Soldering

Nozzle accessibility must be evaluated before selecting the machine.

Wave vs Selective Soldering for Automotive PCBA

Neither process is universally better.

Some factories may use both technologies for different products.

Step 7: Cooling

After soldering, the PCB should cool sufficiently before downstream handling.

Cooling may be provided by:

Integrated cooling
Cooling conveyor
Controlled airflow

The required configuration depends on board thermal mass and production speed.

Step 8: Post-Solder Inspection

Common THT soldering defects can include:

Solder bridges
Insufficient solder
Poor wetting
Incomplete hole fill
Excessive solder
Icicles
Solder balls

Potential causes can include:

Flux application
Preheat
Solder temperature
Solderability
Conveyor parameters
Nozzle settings
PCB design
Component condition
Equipment maintenance
Inspection methods may include:
Visual inspection
Magnification
AOI where applicable
X-ray for selected hidden structures

The inspection strategy should be defined according to the actual PCB.

Step 9: Electrical and Functional Testing

Testing is an important part of automotive PCBA manufacturing.

Depending on product requirements, manufacturers may use:

ICT
Functional testing
Programming
Communication testing
I/O verification
Power testing

Some products may require additional product-specific testing.

The exact test plan should follow the design, customer requirements, and applicable manufacturing specifications.

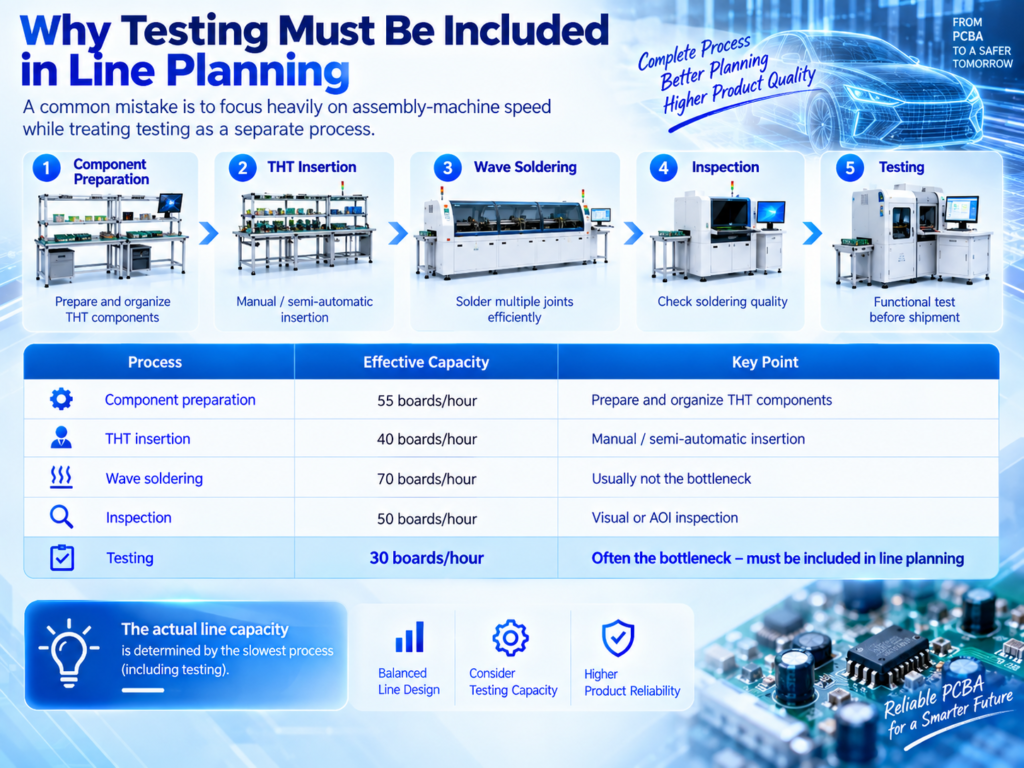

Why Testing Must Be Included in Line Planning

A common mistake is to focus heavily on assembly-machine speed while treating testing as a separate process.

Consider this example:

The effective finished output is approximately limited by the 30-board-per-hour testing process unless additional test capacity is provided.

Increasing wave soldering capacity from 70 to 90 boards per hour would not solve this bottleneck.

Line Balancing for Automotive DIP Assembly

A good DIP assembly line should balance:

Component Preparation → Insertion → Inspection → Soldering → Inspection → Testing

Important metrics can include:

Cycle time
Takt time
WIP
First-pass yield
Rework
Changeover time
Downtime
Test capacity

The fastest individual machine does not necessarily create the most productive line.

Manual Automotive DIP Assembly Line

A manual configuration may include:

Component Preparation → Manual THT Insertion → Pre-Solder Inspection → Wave/Selective Soldering → Manual Inspection → Testing

This can be suitable for:

Prototype production
Lower-volume products
Frequent changeovers
Irregular THT components
Its main advantage is flexibility.

Semi-Automatic Automotive DIP Assembly Line

A semi-automatic line may include:

Automatic Loader → Insertion Conveyor → Manual/Semi-Automatic THT Insertion → Inspection Conveyor → Wave Soldering → Cooling → Automatic Unloader → Inspection → Testing

This configuration can offer a practical balance between:

Automation
Flexibility
Labor
Investment

It is particularly useful when the BOM contains many components that are difficult to insert automatically.

Higher-Automation Automotive DIP Line

A higher-automation configuration may include:

Automatic Loader → Automatic/Semi-Automatic THT Insertion → Automated PCB Transfer → Inspection → Wave/Selective Soldering → Cooling → Inspection → Testing → Automatic Unloading

Optional systems may include:

Barcode scanning
Automatic width adjustment
Recipe management
Traceability
Data collection
Buffer conveyors

Higher automation is most useful when product demand and component structure justify the investment.

Traceability in Automotive PCBA Manufacturing

Depending on customer and product requirements, traceability may record information such as:

PCB serial number
Production time
Machine
Recipe
Component lot
Operator
Soldering process data
Inspection results
Test results

The required traceability architecture should be defined before selecting equipment and software.

Do not assume that every automotive product requires exactly the same data structure.

Barcode Integration

Barcode identification can help link a PCB with:

Product model
Process recipe
Production record
Inspection result
Test result

In higher-automation factories, barcode data may also support automatic recipe selection.

This can reduce the risk of using the wrong machine program during product changeover.

High-Mix Automotive Production

Automotive electronics factories may produce multiple PCB models.

High-mix production should prioritize:

Flexible workstations
Fast product changeover
Recipe management
Adjustable conveyors
Material kitting
Flexible soldering
Flexible testing fixtures

In this environment, maximum machine speed may be less important than changeover efficiency.

Higher-Volume Automotive Production

For stable, higher-volume products, manufacturers may prioritize:

Automatic loading
Automatic component preparation
Automatic insertion where practical
Conveyor integration
Automated soldering
Automated inspection
Parallel testing
Traceability

The line should still be designed around the actual BOM rather than an assumed automation level.

PCB Design Considerations for THT Assembly

PCB design can directly affect manufacturing.

Important factors include:

Component spacing
Hole dimensions
Pad geometry
Lead length
Bottom-side clearance
Copper distribution
Component orientation
Board edge clearance

These factors can influence:

Insertion
Wave soldering
Selective soldering
Inspection
Rework

Early design-for-manufacturing review can reduce production problems.

PCB Orientation for Wave Soldering

Board orientation can influence solder drainage and bridging behavior.

Important considerations include:

Connector orientation
Pin direction
Component spacing
PCB geometry
Wave direction

The optimal orientation should be evaluated using the actual PCB.

When Is a Wave Soldering Pallet Needed?

A pallet may be useful for:

Shielding selected PCB areas
Protecting bottom-side SMT components
Supporting the PCB
Controlling solder exposure

However, pallets also introduce:

Tooling cost
Additional thermal mass
Cleaning
Storage
Maintenance

Not every automotive PCBA requires a pallet.

Selective soldering may also be an alternative for some board designs.

Managing High-Thermal-Mass Automotive PCBAs

Some automotive boards contain:

Heavy copper
Large connectors
Large power components
Thick PCB structures

These can make THT soldering more challenging.

Preheating should therefore be evaluated carefully.

The correct settings depend on:

PCB construction
Flux
Solder alloy
Component mass
Soldering equipment

Process development should use actual board temperature data where appropriate rather than relying only on machine setpoints.

Common Automotive DIP Assembly Problems

Incorrect Component Orientation

Possible improvements include:

Better work instructions
Component kitting
Visual aids
Pre-solder inspection

Automated verification where appropriate

Incomplete Hole Fill

Review:

PCB thermal mass
Flux
Preheat
Solderability
Solder temperature
Contact conditions

Solder Bridges

Review:

PCB orientation
Lead length
Pad design
Conveyor parameters
Wave conditions

Slow Manual Insertion

Improve:

Workstation layout
Material presentation
Component preparation
Operator balancing
Partial automation
Excessive WIP

Compare cycle times across all processes and identify the true bottleneck.

High Rework

Track defect data and investigate root causes rather than relying only on additional inspection.

How to Improve Automotive DIP Line Efficiency

A practical improvement plan may include:

Measure cycle time at every process.
Identify the bottleneck.
Improve component kitting.
Optimize workstation layout.
Automate component preparation where practical.
Automate suitable THT insertion.
Standardize pre-solder inspection.
Optimize wave/selective soldering.
Reduce rework.
Balance inspection and testing capacity.

The goal is higher good-board output, not simply faster machine speed.

Integrating DIP Assembly with Conformal Coating

Some automotive PCBAs may require conformal coating after assembly and testing.

A possible process is:

SMT → THT Assembly → Soldering → Inspection → Testing → Cleaning/Preparation → Conformal Coating → Curing → Final Inspection

If coating is required, manufacturers should consider its capacity during factory planning.

A fast SMT + DIP line can create excessive WIP if coating or curing capacity is significantly lower.

Factory Layout for an Automotive DIP Line

A practical layout should consider:

Incoming material
Component preparation
THT insertion
Pre-solder inspection
Soldering
Cooling
Inspection
Testing
Rework
Downstream coating or assembly
Maintenance access

Material should flow logically through the factory with minimal unnecessary handling.

ESD and Workstation Planning

The THT area remains part of electronics manufacturing and should follow the factory’s ESD-control requirements.

Depending on the production system, this may include:

ESD workbenches
Grounding
Wrist straps
ESD-safe material storage
ESD-compatible handling equipment

Operator workstations should also provide sufficient space for larger automotive THT components.

Exhaust and Utilities

Wave and selective soldering equipment may require:

Electrical power
Compressed air
Exhaust
Ventilation

Nitrogen depending on process and configuration

Factory utilities should be reviewed before machine installation.

This is especially important when building a new PCBA factory.

New vs Pre-Owned DIP Equipment

Automotive electronics manufacturers may consider:

New equipment
Suitable pre-owned equipment
Hybrid production lines

Pre-owned equipment can reduce initial investment, but it should be evaluated carefully.

For soldering equipment, inspect:

Conveyor
Fluxing system
Preheating
Solder pot
Pump/nozzle system
Cooling
Control system
Maintenance history
Spare parts availability

For automatic insertion equipment, evaluate:

Mechanical condition
Feeding systems
Accuracy
Software
Component compatibility
Technical support

Total cost of ownership should be considered rather than purchase price alone.

Three Typical Automotive DIP Line Configurations

Configuration 1: High-Mix / Lower Volume

Component Preparation → Manual THT Insertion → Inspection → Selective/Wave Soldering → Manual Inspection → Testing

Priority: Flexibility

Suitable for multiple product models and frequent changeovers.

Configuration 2: Medium-Volume Semi-Automatic Line

Automatic Loader → Component Preparation → Insertion Conveyor → Manual/Semi-Automatic Insertion → Pre-Solder Inspection → Wave/Selective Soldering → Cooling → Inspection → Parallel Testing

Priority:Balanced automation

Suitable for factories increasing capacity while retaining flexibility for irregular components.

Configuration 3: Higher-Volume Automotive Production

Automatic Loading → Automated/Semi-Automated THT Insertion → Inspection → Automated Soldering → Cooling → Inspection → Parallel Testing → Traceability → Automatic Unloading

Priority: Throughput and process consistency

Suitable when product structure and production volume support higher automation.

Automotive DIP, SMT and PCBA Solutions from Fuliu Electronics

Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and services.

With extensive experience in the SMT industry, we specialize in dependable equipment, professional technical support, and complete SMT and PCBA production line solutions.

Our product portfolio includes SMT pick and place machines from Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens from Germany, MagicRay SPI/AOI inspection systems, automatic solder paste printers, supporting PCBA equipment, pre-owned SMT equipment, SMT spare parts, machine leasing, and maintenance services.

For automotive electronics manufacturers planning a new DIP/THT line or upgrading an existing production process, Fuliu Electronics can help evaluate:

PCB dimensions
BOM
THT component structure
Component packaging
Manual vs automatic insertion
Target production capacity
Product mix
Wave vs selective soldering
Inspection
Testing
Traceability
Existing SMT equipment
Factory layout
Automation requirements
Investment budget

Instead of selecting equipment independently, manufacturers can evaluate the complete production flow:

SMT Assembly → THT Insertion → Wave/Selective Soldering → Inspection → Testing → Downstream Process

As part of our global growth strategy, Fuliu Electronics is actively expanding into international markets, with key focus areas including India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe.

Frequently Asked Questions

1. What is a DIP assembly line for automotive electronics?

It is a production system used to prepare, insert, solder, inspect, and test through-hole components on automotive PCBAs.

2. Is DIP the same as THT?

Not exactly. DIP is a specific package type, while THT describes the broader through-hole mounting technology. “DIP line” is commonly used in factories as a broader term for THT assembly.

3. Why are through-hole components still used in automotive electronics?

Certain connectors, relays, terminals, capacitors, magnetic components, and power components may use through-hole mounting because of their electrical, mechanical, packaging, or product-design requirements.

4. Can automotive THT insertion be fully automated?

Some standardized components can be automatically inserted, but large, irregular, or differently packaged components may still require manual or semi-automatic insertion.

5. Should automotive PCBAs use wave or selective soldering?

It depends on PCB design. Wave soldering is often efficient for many compatible THT joints, while selective soldering can be useful for localized joints and complex mixed SMT/THT boards.

6. Is selective soldering better for bottom-side SMT components?

It can be advantageous because solder can be targeted at selected THT joints. However, nozzle access and component clearance must be evaluated.
