Conformal coating can help protect PCB assemblies from environmental conditions such as moisture, humidity, dust, condensation, and certain contaminants, depending on the coating chemistry and application.
For manufacturers moving from manual coating to automated production, choosing the correct PCB conformal coating machine is an important decision.
However, coating machines should not be selected simply by comparing:
- Maximum speed
- Number of axes
- Number of valves
- Machine dimensions
- Equipment price
The correct machine depends on the actual manufacturing process.
Before selecting equipment, manufacturers should evaluate:
PCB Design + Keep-Out Areas + Coating Material + Application Pattern + Required Coverage + Production Capacity + Curing Method + Inspection + Automation + Factory Layout
How to Choose a PCB Conformal Coating Machine
This guide explains the most important factors to consider when choosing a conformal coating machine for PCBA manufacturing.
What Is a PCB Conformal Coating Machine?
A PCB conformal coating machine automatically applies a controlled protective coating to selected areas of a PCB assembly.
Instead of manually spraying the entire board, an automatic selective coating machine can follow a programmed path and apply coating to required regions.
Depending on the machine and valve configuration, it may support:
- Selective spraying
- Film coating
- Needle dispensing
- Controlled material application
- Edge or localized coating
A typical automated coating process may be:
PCB Loading → Preparation → Selective Coating → Inspection → Flash-Off → Curing → Final Inspection → Unloading
Additional automation can include:
- Barcode scanning
- Recipe management
- Automatic width adjustment
- Buffers
- Traceability
- Production data collection

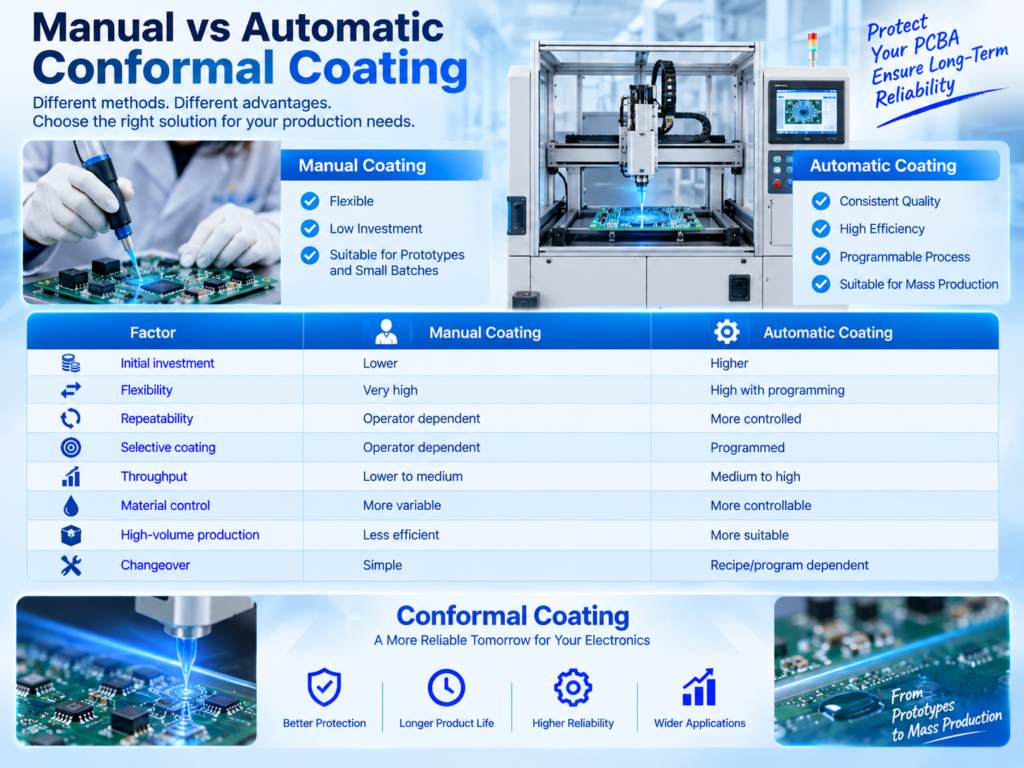

Do You Actually Need an Automatic Conformal Coating Machine?
Before buying equipment, determine whether automation is necessary.
Manual coating can still be practical for:
- Prototypes
- Engineering samples
- Very low production volume
- Frequent product changes
- Simple coating requirements
Automatic coating becomes more attractive when manufacturers need:
- Higher throughput
- Better process repeatability
- Reduced operator dependence
- More controlled material application
- Repeatable selective coating
- Integration with automated production
The objective should be to solve a manufacturing requirement, not simply increase automation.
Start with the PCB
The PCB is the most important starting point.
Before requesting a machine quotation, provide:
- PCB length
- PCB width
- PCB thickness
- Panel dimensions
- Maximum component height
- Minimum component spacing
- Board weight where relevant
- Top-side and bottom-side layout
PCB dimensions determine:
- Conveyor width
- Machine working area
- Motion range
- Component clearance
- Fixture requirements
Do not purchase a machine before confirming that its actual working envelope supports your products.
Identify the Areas That Need Coating
Not every area of a PCB should necessarily be coated.
The coating drawing should identify:
- Areas requiring coating
- Areas that can tolerate coating
- Areas that must remain uncoated
This information determines the required selectivity.
A simple board with large open coating areas may require a different valve configuration from a densely populated PCBA with many small keep-out areas.
Identify Keep-Out Areas
Common coating keep-outs may include:
- Connectors
- Electrical contacts
- Test points
- Programming interfaces
- Switches
- Selected sensors
- Mechanical connection areas
- Components specified by the product design
The number, size, and location of keep-outs strongly influence machine selection.
For example, a PCB with a connector surrounded by coating areas may require more precise edge control than a board that can be coated almost completely.
Evaluate Component Height and Spacing
Modern PCBAs can contain components with very different heights.
Examples include:
- Small SMT components
- Tall capacitors
- Transformers
- Connectors
- Relays
- Heat sinks
The coating valve must move around these components without collision.
Therefore, evaluate:
- Maximum component height
- Distance between tall components
- Valve body dimensions
- Nozzle dimensions
- Machine Z-axis travel
- Required working angle
A machine with a large nominal working area may still be unsuitable if the valve cannot physically access the required coating regions.
Select the Coating Material First
The coating material has a major influence on machine configuration.
Common conformal coating material families include:
- Acrylic
- Silicone
- Polyurethane
- Epoxy
- UV-curable materials
- Specialized coating chemistries
Different materials can have different:
- Viscosity
- Solids content
- Flow characteristics
- Pot life
- Curing mechanisms
- Solvent behavior
- Material compatibility requirements
Do not select the coating valve before confirming the intended coating material.
Check Material Viscosity
Viscosity influences how the coating behaves during application.
A low-viscosity material may flow differently from a high-viscosity coating.
This affects:
- Valve selection
- Pressure
- Flow rate
- Nozzle choice
- Coating width
- Edge definition
- Material handling
The supplier should review the actual coating material datasheet during machine configuration.
Understand Coating Valve Types
The coating valve is one of the most important parts of an automatic conformal coating machine.
Different application methods may be used for different PCB geometries.
Selective Spray Valve
A spray-style valve can be useful for applying coating over wider regions.
Potential applications include:
- General PCB areas
- Larger coating zones
- Higher-area coverage
However, spray characteristics and overspray must be considered around keep-out areas.
Film Coating Valve
A film-style application can create a controlled coating pattern across selected regions.
It can be useful when:
- Defined coating width is needed
- Long paths need to be covered efficiently
- Edge control is important
Actual performance depends on material and valve design.
Needle Dispensing Valve
A needle can apply material to smaller or more localized areas.
It may be useful for:
- Narrow regions
- Localized dispensing
- Difficult geometry
Areas requiring controlled material placement
However, processing large areas entirely by needle dispensing may increase cycle time.
Multi-Valve Configuration
Some machines can be configured with multiple application valves.
For example:
Film Valve + Needle Valve
or other combinations.
This can allow one machine to process:
- Large coating areas
- Narrow regions
- Complex edges
without relying on a single application method.
However, more valves are not automatically better.
Each additional valve should solve a real PCB coating requirement.
Evaluate Coating Accuracy Realistically
When evaluating machine accuracy, do not focus only on the motion-system specification.
Actual coating results depend on:
- Material viscosity
- Valve type
- Nozzle
- Valve height
- PCB flatness
- Component geometry
- Coating pressure
- Programming
- Conveyor positioning
- Environmental conditions
A highly accurate motion platform cannot guarantee perfect coating boundaries if the material itself spreads significantly after application.
Therefore, sample coating trials are valuable when selecting equipment for demanding products.
Determine Whether Masking Is Still Required
One common reason to automate conformal coating is to reduce masking.
Selective coating can often reduce manual masking by avoiding connectors, contacts, and other keep-out areas.
However:
Automatic selective coating does not always eliminate masking completely.
Masking may still be required when:
- Keep-out areas are extremely close to coating zones
- Component geometry blocks valve access
- Coating can flow into restricted areas
- Very sharp boundaries are required
- Sensitive contacts cannot tolerate contamination
Evaluate masking requirements using the real PCB rather than assuming automation will remove the process entirely.
Check Conveyor Compatibility
For inline production, the coating machine should match upstream and downstream equipment.
Confirm:
- Conveyor height
- Conveyor direction
- PCB width
- Width adjustment
- Transfer method
- Board sensing
- Communication requirements
A machine that works well as a standalone system may require additional integration work when installed in an automatic line.
Calculate the Required Coating Cycle Time
Do not compare machines using only maximum travel speed.
Actual coating cycle time depends on:
- Number of coating areas
- Total path length
- Number of valves
- Coating width
- PCB dimensions
- Keep-out complexity
- Required passes
- Valve movement
- Loading/unloading
- Product recipe
For example, two PCBs of identical dimensions can have very different coating times if one requires nearly full-board coverage while the other contains many small selective regions.
Calculate Required Production Capacity
Suppose a factory requires:
600 PCBAs per 10-hour production shift
The theoretical average takt time is:
36,000 seconds ÷ 600 = 60 seconds per PCBA
The coating process therefore needs to support the required takt while accounting for:
- Loading
- Positioning
- Coating
- Transfer
- Routine interruptions
- Product handling
But coating-machine speed alone is not enough.
The entire coating line must be evaluated.
Do Not Forget Flash-Off Time
After application, some coating materials may require a flash-off period before curing.
This can allow solvent or other volatile components to dissipate as required by the coating process.
Flash-off requirements depend on:
- Coating chemistry
- Applied quantity
- Thickness
- Ambient conditions
- Curing method
If flash-off is required, the line may need:
- Flash-off conveyor
- Buffer
- Controlled waiting area
This process can significantly affect line length and capacity.
Choose the Correct Curing System
The coating machine cannot be evaluated separately from curing.
Depending on the material, curing may involve:
- Ambient cure
- Thermal cure
- UV cure
- Moisture cure
- Dual-cure mechanisms
The curing equipment must be compatible with the selected coating chemistry.
Why Curing Can Become the Bottleneck
Suppose:
- Coating cycle = 40 seconds
- Inspection = 30 seconds
- Required flash-off = 5 minutes
- Curing residence time = 15 minutes
The coating machine may process one PCB every 40 seconds, but the line still needs sufficient flash-off and curing capacity to maintain that flow.
Long residence time does not automatically mean low throughput if multiple boards can be processed simultaneously in a conveyorized system.
Therefore, calculate:
Residence Time + Conveyor Capacity + PCB Pitch + Line Speed
rather than comparing process time alone.
Match the Machine to the Curing Chemistry
A UV-curable coating requires a different downstream process from a thermal-curing coating.
For UV materials, consider whether:
All coated regions receive sufficient UV exposure
Tall components create shadow areas
The coating chemistry provides secondary or dual-cure mechanisms where required
Do not assume UV curing automatically cures every coated region equally.
Material specifications should guide the curing process.
Plan Coating Inspection
Inspection can occur:
- Immediately after coating
- After flash-off
- After curing
- At multiple stages
Inspection may check:
- Coverage
- Missed areas
- Overspray
- Bubbles
- Pooling
- Contamination of keep-outs
- General coating appearance
Some coatings contain UV tracers that make coverage easier to see under suitable illumination.
However, visible UV fluorescence does not automatically prove correct coating thickness or full protective performance.
Consider Automatic Inspection
For higher-volume lines, manufacturers may evaluate automated coating inspection.
The decision depends on:
- Product volume
- Required inspection criteria
- Coating material
- PCB complexity
- Quality strategy
- Traceability requirements
Automated inspection should solve a defined quality-control need rather than being added only to increase the automation level.
Evaluate the Material Supply System
Material supply is another important machine-selection factor.
Depending on coating chemistry and production requirements, evaluate:
- Material container size
- Pressure system
- Tank configuration
- Agitation where required
- Filtration
- Tubing compatibility
- Material level monitoring
- Pot life
- Material replenishment
Material-contact components should be compatible with the coating chemistry.
Consider Material Pot Life
Some materials have limited usable life after mixing or preparation.
If the material has a defined pot life, the coating system should be designed to minimize:
- Excess material preparation
- Material waste
- Cured material in tubing
- Unplanned cleaning
Material management should therefore be included in equipment selection.
Check Cleaning and Maintenance Requirements
Coating equipment requires regular maintenance.
Important maintenance areas can include:
- Valves
- Nozzles
- Needles
- Material tubing
- Filters
- Pressure systems
- Conveyor
- Motion system
- Exhaust system
Ask the supplier:
- How is the valve cleaned?
- How often is cleaning required?
- What solvent or cleaning method is compatible?
- Which parts are consumables?
- How long does routine maintenance take?
- Which spare parts should be stocked?
A machine that is difficult to maintain can create unnecessary production downtime.
Plan Exhaust and Ventilation
Depending on coating chemistry, the process may require suitable:
- Exhaust
- Ventilation
- Fume handling
- Factory environmental controls
Requirements depend on:
- Coating material
- Solvent content
- Application method
- Production volume
- Equipment design
- Local regulations
Material safety information should be reviewed when planning the installation.
Evaluate Recipe Management
High-mix factories may process many PCB models.
Recipe management can help store parameters such as:
- Coating path
- Valve selection
- Speed
- Pressure
- Valve height
- Conveyor width
- Product identification
This can reduce setup time and improve repeatability during changeover.
Consider Barcode and Traceability Integration
For factories requiring traceability, the coating machine may be integrated with barcode or production-data systems.
Depending on requirements, records can include:
- PCB ID
- Product model
- Recipe
- Coating time
- Machine
- Process result
- Inspection result
Not every factory requires the same level of traceability.
Define the required data before purchasing equipment.
Consider Double-Sided Coating
Some PCBAs may require coating on both sides.
If so, evaluate:
- Board flipping
- First-side handling
- Cure or tack condition before flipping
- Fixture requirements
- Second-side coating
- Total cycle time
A machine suitable for single-side coating may still be used, but the overall process flow can become more complex.
Check PCB Fixturing Requirements
Fixtures may be useful when:
- PCB flatness varies
- Boards are irregularly shaped
- Panels need support
- Component weight affects stability
- Coating must avoid certain edge regions
Fixtures can improve repeatability but also add:
- Tooling cost
- Changeover
- Cleaning
- Maintenance
Evaluate whether the PCB can run directly on the conveyor before adding unnecessary tooling.
Manual vs Automatic Conformal Coating
Neither process is universally better.
Production volume, PCB complexity, labor, quality requirements, and budget should determine the choice.
Standalone vs Inline Coating Machine
Standalone Machine
A standalone system can be suitable for:
- Lower-volume production
- Flexible manufacturing
- Manual loading
- Limited floor space
- Inline Coating Machine
An inline system can integrate with:
- PCB loader
- Conveyor
- Inspection
- Flash-off
- Curing
- Unloader
It is more suitable when continuous automated production is required.
Typical Semi-Automatic Coating Line
A practical semi-automatic configuration may be:
Manual Loading → Selective Coating Machine → Manual Inspection → Flash-Off → Curing → Final Inspection
This can provide automatic application without requiring full-line automation.
Typical Fully Automatic Conformal Coating Line
A more automated line may include:
PCB Loader → Selective Coating Machine → Coating Inspection → Flash-Off Conveyor → Curing System → Final Inspection → PCB Unloader
Optional functions include:
- Barcode scanning
- Automatic width adjustment
- Buffers
- Traceability
- Recipe management
The complete line should be balanced around actual production capacity.
Common Conformal Coating Defects
Machine selection should also consider the ability to control common process problems.
Overspray
Possible causes include:
- Incorrect valve selection
- Excess pressure
- Incorrect valve height
- Poor programming
Uneven Coating
Review:
- Material viscosity
- Flow rate
- Speed
- Valve condition
- PCB geometry
Bubbles
Possible contributors include:
- Material handling
- Air introduction
- Application conditions
- Coating thickness
- Surface conditions
Pinholes
Investigate:
- Surface contamination
- Coating material
- Application
- Film formation
- Cure conditions
Dewetting
Possible causes include:
- Surface contamination
- Residues
- Material incompatibility
- Poor surface preparation
Pooling
Review:
- Material quantity
- PCB geometry
- Valve path
- Coating viscosity
- Application speed
A better machine can improve process control, but it cannot compensate for every material, cleanliness, or PCB-design problem.
Should PCBAs Be Cleaned Before Coating?
There is no universal answer.
The requirement depends on:
- Flux chemistry
- PCB cleanliness
- Coating material
- Product specification
- Customer requirements
Contamination can affect coating adhesion and wetting.
Therefore, surface condition should be evaluated before defining the coating process.
If cleaning is required, it should be planned as part of the complete production flow.
Should Testing Be Done Before Conformal Coating?
Testing before coating is often practical because coating can make later repair and rework more difficult.
A possible process is:
SMT/THT Assembly → Inspection → Testing → Cleaning/Preparation → Conformal Coating → Curing → Final Inspection
However, the exact sequence should follow product and process requirements.
How to Compare Two Conformal Coating Machines
Do not compare only the specification sheet.
Use the same PCB and coating material to evaluate:
- Coating coverage
- Keep-out control
- Cycle time
- Valve accessibility
- Overspray
- Material consumption
- Programming
- Changeover
- Cleaning
- Maintenance
- Conveyor compatibility
- Downstream curing integration
A sample production trial can provide more useful information than nominal machine speed alone.
Questions to Ask a Conformal Coating Machine Supplier
Before purchasing, ask:
- Can the machine process my maximum PCB size?
- Can it clear my tallest components?
- Which coating materials are compatible?
- Which valve should be used for my PCB?
- Can multiple valves be installed?
- How close can coating be applied to keep-out areas under my actual process?
- Is masking still required?
- What is the estimated cycle time using my PCB?
- How is the material supplied?
- How is the valve cleaned?
- What consumables are required?
- What exhaust is required?
- Can the machine integrate with flash-off and curing?
- Is barcode integration available?
- What technical support is provided?
The supplier should evaluate the actual PCB and coating material rather than recommend a machine based only on board dimensions.
How to Avoid Over-Automating the Coating Process
A fully automatic coating line is not automatically the best solution.
For example, if a factory produces:
- Small batches
- Many PCB models
- Frequent engineering changes
a standalone automatic selective coating machine with manual loading may offer better flexibility.
Conversely, a stable high-volume product may justify:
- Automatic loading
- Coating
- Inspection
- Flash-off
- Curing
- Automatic unloading
The best automation level is the one that solves the actual bottleneck and quality requirement.
New vs Pre-Owned Conformal Coating Equipment
Manufacturers may consider both new and suitable pre-owned equipment.
For pre-owned machines, evaluate:
- Motion system
- Conveyor
- Valve condition
- Material system
- Control system
- Software
- Sensors
- Exhaust
- Maintenance history
- Spare parts availability
- Technical support
Pay particular attention to material-contact components.
Previous coating materials may have affected:
- Tubing
- Valves
- Seals
- Tanks
Cleaning and compatibility should be checked before introducing a new material.
How Much Does a PCB Conformal Coating Machine Cost?
There is no universal fixed price.
Cost depends on:
- Working area
- Number and type of valves
- Conveyor configuration
- Material supply system
- Automation
- Control functions
- Barcode/traceability
- Inspection integration
- Brand
- New or pre-owned condition
The coating machine is also only one part of the project.
A complete budget may include:
Coating Machine + Loader/Conveyor + Inspection + Flash-Off + Curing + Exhaust + Fixtures + Installation + Spare Parts + Training
Manufacturers should compare total project cost rather than machine price alone.
PCB Conformal Coating Solutions from Fuliu Electronics
Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and services.
With extensive experience in the SMT industry, we specialize in dependable equipment, professional technical support, and complete SMT and PCBA production line solutions.
Our product portfolio includes SMT pick and place machines from Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens from Germany, MagicRay SPI/AOI inspection systems, automatic solder paste printers, supporting PCBA equipment, pre-owned SMT equipment, SMT spare parts, machine leasing, and maintenance services.
For manufacturers planning a conformal coating process, Fuliu Electronics can help evaluate:
- PCB dimensions
- Component layout
- Coating areas
- Keep-out areas
- Coating material
- Valve configuration
- Target production capacity
- Flash-off
- Curing
- Inspection
- Existing PCBA equipment
- Factory layout
- Automation requirements
- Investment budget
- Instead of selecting the coating machine independently, manufacturers can evaluate the complete downstream process:
PCBA Testing → Preparation → Selective Coating → Inspection → Flash-Off → Curing → Final Inspection
As part of our global growth strategy, Fuliu Electronics is actively expanding into international markets, with key focus areas including India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe.
Frequently Asked Questions
Start with the PCB layout, coating areas, keep-outs, coating material, component height, required capacity, curing process, inspection requirements, and automation target.
The complete system matters, but valve selection is particularly important because it directly affects how material is applied to the PCB.
It depends on coating material, area size, keep-out geometry, required edge control, component spacing, and cycle time. Some products benefit from multiple valve types.
It can reduce masking significantly in many applications, but it does not always eliminate it. Very tight keep-outs or difficult geometry may still require masking.
Potentially, but material compatibility with valves, seals, tubing, tanks, and cleaning processes must be evaluated. Changing chemistry may require extensive cleaning or dedicated material paths.
Estimate actual cycle time using the PCB coating path, valve type, coating width, loading/unloading, and product recipe. Then compare it with the required production takt.
