What is the best conformal coating equipment for PCBA manufacturing?
For an electronics manufacturer planning to automate PCB coating, this is an important purchasing question. However, there is no single coating machine configuration that is best for every PCBA factory.
A manufacturer producing small batches of many PCB models may prioritize flexibility and fast programming.
A factory producing one stable product at higher volume may prioritize automatic loading, selective coating, inspection, curing, and traceability.
Meanwhile, a PCBA with tall components and narrow keep-out areas may require a completely different coating valve configuration from a relatively flat board with large open coating regions.
For this reason, the best conformal coating equipment is the equipment that matches:
PCB Design + Coating Material + Keep-Out Areas + Required Coverage + Cycle Time + Curing Process + Inspection + Factory Automation
Best Conformal Coating Equipment for PCBA Manufacturing
This guide explains the major types of conformal coating equipment and how to configure a practical coating solution for PCBA manufacturing.
What Is Conformal Coating Equipment?
Conformal coating equipment applies a thin protective material over selected PCB surfaces.
Depending on coating chemistry and application, conformal coating can help protect PCB assemblies against environmental conditions such as:
- Moisture
- Humidity
- Condensation
- Dust
- Certain contaminants
- Corrosive environments
Conformal coating is different from potting.
Coating generally follows the contours of the PCB and components with a relatively thin layer, while potting uses a much thicker encapsulating material.
Neither process is universally better. Selection depends on the product and operating environment.
What Equipment Is Required for PCBA Conformal Coating?
A coating process can involve much more than the coating machine itself.
A complete automated line may include:
PCB Loader → Preparation/Inspection → Selective Coating Machine → Coating Inspection → Flash-Off Conveyor → Curing System → Final Inspection → PCB Unloader
Optional equipment can include:
- PCB conveyors
- Barcode scanners
- Board-flipping systems
- Buffers
- Automatic width adjustment
- Material supply systems
- Exhaust
- Traceability systems
The best solution should therefore be evaluated at the production-line level.
Manual Conformal Coating Equipment
The simplest coating setup may use:
- Manual spray equipment
- Brushes
- Hand dispensing tools
- Manual dip coating
These methods can remain practical for:
- Prototypes
- Engineering samples
- Repair
- Very low-volume production
- Products with frequent process changes
The primary advantage is flexibility and relatively low initial investment.
However, coating results can depend heavily on operator technique.
For growing production volume, manufacturers may begin to experience problems such as:
- Variable coverage
- Excessive material consumption
- Overspray
- High masking labor
- Inconsistent cycle time
This is often when selective coating automation becomes worth evaluating.
Automatic Selective Conformal Coating Machine
For many modern PCBA factories, an automatic selective coating machine is the core equipment of an automated coating process.
Instead of spraying the entire PCB, the machine follows a programmed path and applies coating to selected regions.
This can help:
- Control coating location
- Avoid defined keep-out areas
- Improve process repeatability
- Reduce operator dependence
- Control material usage
- Support automated production
However, selective coating does not automatically eliminate every masking requirement.
PCB geometry must still be reviewed carefully.
Selective Spray Coating Equipment
A selective spray valve can apply coating across relatively broad PCB regions.
It may be useful when:
- Large areas require coverage
- Component geometry permits spraying
- High area coverage is required
- Keep-out boundaries provide suitable clearance
Important process variables include:
- Spray pattern
- Valve height
- Pressure
- Material viscosity
- Travel speed
- PCB geometry
Overspray should be evaluated around sensitive keep-out areas.
Film Coating Equipment
Film-style coating can apply a controlled band of material along programmed paths.
It can be useful for:
- Larger coating areas
- Long continuous paths
- Defined coating patterns
- Efficient surface coverage
The actual coating width and edge behavior depend on the valve, material, viscosity, pressure, height, and motion parameters.
For many PCBAs, film coating can provide an efficient balance between selectivity and throughput.
Needle Dispensing Equipment
Needle dispensing is useful when material must be placed in smaller or difficult-to-access areas.
Applications may include:
- Narrow PCB regions
- Localized coating
- Areas between components
- Small targeted zones
Its advantage is controlled material placement.
However, using a needle to cover very large PCB areas can increase cycle time significantly.
Therefore, it is often combined with another coating method.

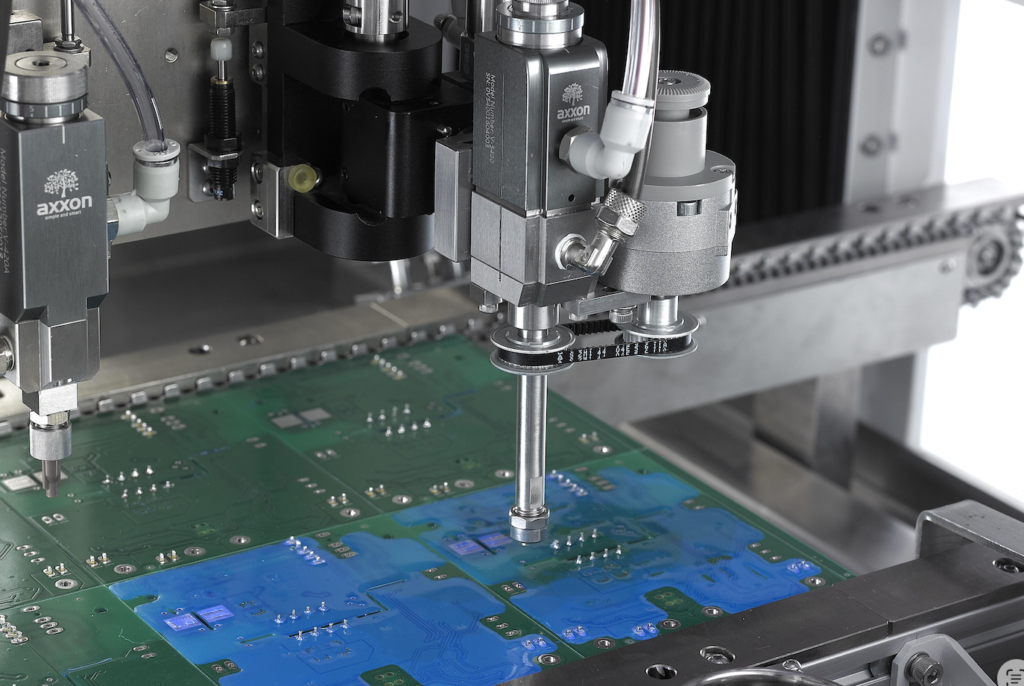

Multi-Valve Conformal Coating Machine
For complex PCBAs, a multi-valve system may provide greater flexibility.
For example, one machine could use:
Film Coating Valve + Needle Dispensing Valve
The film valve can process larger regions, while the needle handles narrow or localized areas.
A multi-valve configuration can be useful for:
- Automotive PCBAs
- Power electronics
- Industrial control boards
- Communication electronics
- Mixed-component PCBAs
However, the highest number of valves does not automatically create the best machine.
Every valve should have a defined manufacturing purpose.

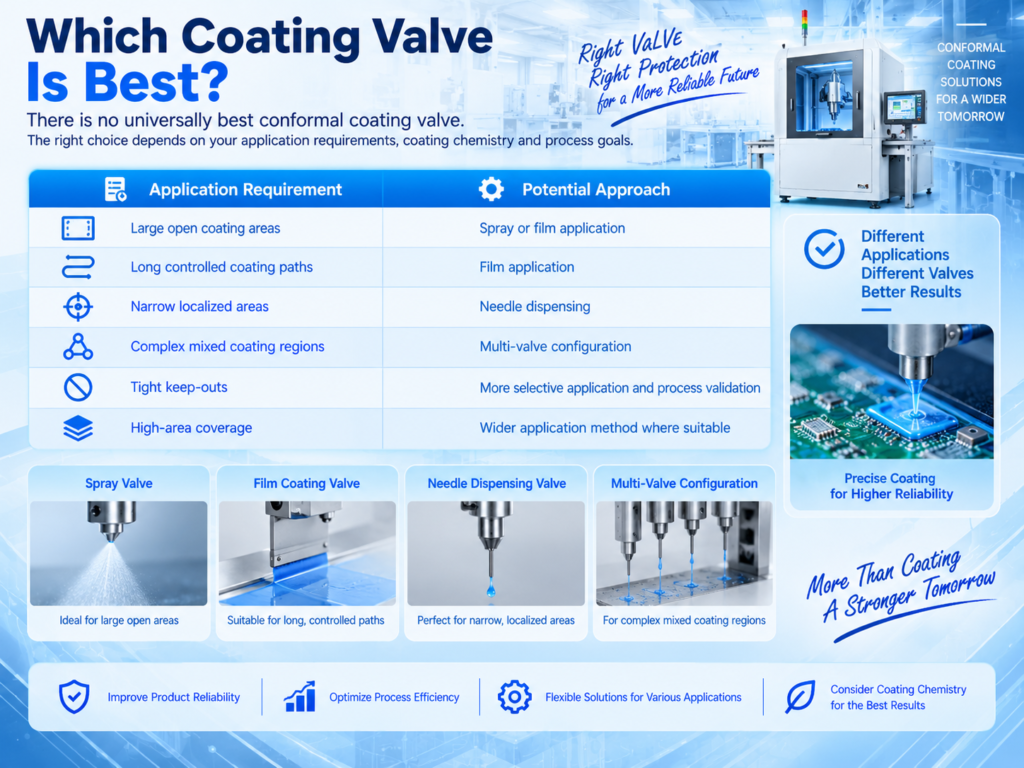

Which Coating Valve Is Best?
There is no universally best conformal coating valve.
Selection should consider:
The final selection must also consider coating chemistry.
Coating Material Supply Equipment
The material supply system is an important part of the coating process.
Depending on the chemistry, the system may include:
- Material container
- Pressure tank
- Pump
- Tubing
- Filters
- Level monitoring
- Agitation where required
- Manufacturers should evaluate:
- Material viscosity
- Pot life
- Storage requirements
- Pressure requirements
- Filtration
- Tubing compatibility
- Seal compatibility
Material-contact components should be suitable for the selected coating chemistry.
Common Conformal Coating Materials
Common material families include:
- Acrylic
- Silicone
- Polyurethane
- Epoxy
- UV-curable coatings
- Specialized chemistries
Each material has different application and curing characteristics.
Therefore, manufacturers should select the coating chemistry before finalizing the coating equipment.
PCB Conveyor and Handling Equipment
For automatic production, PCB handling should be integrated with the coating process.
Handling equipment may include:
- Loader
- Conveyor
- Buffer
- Unloader
- Board flipper
Important specifications include:
- PCB dimensions
- Panel dimensions
- Board weight
- Conveyor width
- Conveyor height
- Transfer direction
For double-sided coating, board handling becomes particularly important.
Flash-Off Equipment
Some coating materials require flash-off before curing.
A flash-off section may use:
- Conveyorized transport
- Buffering
- Controlled residence time
The required process depends on the coating material and application.
Flash-off should not be added or omitted based only on machine configuration; it should follow the coating-process requirements.
Conformal Coating Curing Equipment
Curing is a critical part of a complete coating solution.
Depending on coating chemistry, curing may involve:
- Ambient cure
- Thermal cure
- UV cure
- Moisture cure
- Dual-cure processes
The coating machine and curing system should be selected together.
A high-speed coating machine provides little benefit if the curing process cannot support the same production flow.
Thermal Curing Equipment
Thermal curing systems can provide controlled heating where required by the coating material.
When selecting a curing oven, evaluate:
- PCB dimensions
- Material requirements
- Temperature requirements
- Residence time
- Conveyor speed
- Production capacity
- Exhaust
- Cooling requirements
There is no universal curing temperature suitable for every coating.
Follow the material specifications and validated manufacturing process.
UV Curing Equipment
UV curing can provide rapid processing for compatible coating materials.
However, PCB geometry matters.
Tall components can create UV shadow regions.
Depending on the coating chemistry, these areas may require:
- Additional exposure
- Secondary curing
- Dual-cure chemistry
Therefore, “UV-curable” should not automatically be interpreted as “every coated area cures immediately under one UV exposure.”
Conformal Coating Inspection Equipment
Inspection should be planned as part of the coating line.
Typical inspection criteria include:
- Coverage
- Missed areas
- Overspray
- Bubbles
- Pinholes
- Pooling
- Dewetting
- Contaminated keep-outs
Inspection can be:
- Manual
- Assisted by UV illumination
- Automated where appropriate
The best inspection method depends on product requirements and production volume.
Does UV Inspection Prove Coating Quality?
Some coatings contain UV tracers that make coverage easier to visualize.
UV illumination can help operators identify:
- Missing coating
- Coverage boundaries
- Certain application inconsistencies
However, fluorescence alone does not automatically prove:
- Correct thickness
- Adhesion
- Full curing
- Long-term protection
UV inspection should therefore be considered one part of the quality-control process.
Higher-volume factories may consider automated inspection systems.
Potential benefits include:
- Reduced manual inspection workload
- More standardized inspection
- Production data collection
- Traceability integration
However, automatic inspection should be selected based on actual inspection criteria.
Adding inspection equipment without clearly defined acceptance rules may create unnecessary complexity.
Best Conformal Coating Equipment for High-Mix PCBA Production
High-mix manufacturers typically need flexibility.
A practical configuration may be:
Manual Loading → Programmable Selective Coating Machine → Inspection → Flash-Off → Curing → Final Inspection
Important features can include:
- Recipe storage
- Fast programming
- Adjustable conveyor width
- Flexible valve configuration
- Easy material changeover
- Easy maintenance
Maximum machine speed may be less important than changeover efficiency.
Best Conformal Coating Equipment for Medium-Volume Production
A medium-volume line may use:
Automatic Loader → Selective Coating Machine → Inspection → Flash-Off Conveyor → Curing System → Manual/Automatic Unloading
This configuration balances:
- Automation
- Investment
- Flexibility
- Production capacity
Barcode and traceability functions can be added where required.
Best Conformal Coating Equipment for High-Volume PCBA Production
Higher-volume manufacturing may justify:
Automatic Loader → Barcode Identification → Automatic Selective Coating → Automatic Inspection → Flash-Off → Inline Curing → Final Inspection → Automatic Unloader
Additional systems can include:
- Automatic width adjustment
- Buffers
- Recipe selection
- Production data collection
- Traceability
However, the entire line must be balanced.
Automation that does not address a real bottleneck can increase investment without increasing finished output.
How to Calculate Conformal Coating Line Capacity
Suppose a coating line has:
The effective finished-line output is approximately limited by the 50-board-per-hour curing process, assuming no parallel capacity or other constraints.
Increasing the coating machine to 80 boards per hour would not automatically increase finished output.
The curing bottleneck should be addressed first.
Residence Time vs Throughput
Curing equipment is sometimes misunderstood because residence time can be much longer than coating cycle time.
For example:
- Coating cycle: 45 seconds
- Curing residence time: 12 minutes
This does not necessarily mean the curing system outputs only one PCB every 12 minutes.
A conveyorized oven can contain multiple PCBAs simultaneously.
Actual capacity depends on:
Conveyor Speed + PCB Pitch + Available Process Length + Required Residence Time
This should be calculated during line planning.
PCB Size and Component Height
Before selecting coating equipment, confirm:
- Minimum PCB size
- Maximum PCB size
- Panel size
- PCB thickness
- Maximum component height
- Component spacing
- Board weight where relevant
- Tall components can affect:
- Valve accessibility
- Coating angle
- Nozzle clearance
- UV curing
- Inspection
Machine working area alone is not enough to determine compatibility.
Keep-Out Areas Are Critical
Typical coating keep-outs can include:
- Connectors
- Contacts
- Test points
- Programming interfaces
- Switches
- Selected sensors
- Mechanical connection areas
The coating drawing should clearly define these regions.
A PCB with many small keep-outs may require:
- More precise coating paths
- Smaller application tools
- Slower motion
- Additional masking
This can directly affect equipment selection and cycle time.
Can Automatic Selective Coating Eliminate Masking?
Sometimes it can significantly reduce masking, but not always.
Masking may still be needed when:
- Coating zones are extremely close to connectors
- Material can flow into keep-out areas
- Component geometry limits valve access
- Very sharp boundaries are required
Manufacturers should conduct coating trials using the actual PCB and coating material.
Coating Thickness Considerations
Required coating thickness depends on:
- Coating material
- Product specification
- Application method
- Environmental requirements
- Customer requirements
There is no single coating thickness suitable for every PCBA.
Equipment should therefore be capable of controlling the application according to the validated process rather than targeting a universal value.
Coating Accuracy Is More Than Motion Accuracy
Machine specifications may highlight positioning accuracy.
However, final coating boundaries also depend on:
- Material viscosity
- Valve type
- Pressure
- Nozzle
- Valve height
- Travel speed
- PCB flatness
- Component geometry
- Material flow after application
Therefore, manufacturers should evaluate actual coating results rather than comparing motion specifications alone.
Common Conformal Coating Defects
Overspray
Review:
- Valve selection
- Pressure
- Height
- Program path
- Material characteristics
Bubbles
Investigate:
- Material handling
- Air introduction
- Application conditions
- Coating quantity
- Surface condition
Pinholes
Review:
- Surface contamination
- Material behavior
- Application conditions
- Film formation
- Cure process
- Dewetting
- Potential factors include:
- Surface contamination
- Flux residues
- Material incompatibility
- Surface preparation
Pooling
Review:
- Material quantity
- PCB geometry
- Viscosity
- Valve path
- Application speed
The coating machine is only one part of defect prevention.
Should PCBAs Be Cleaned Before Conformal Coating?
There is no universal requirement that every PCB must be cleaned before coating.
The decision depends on:
- Flux chemistry
- Residue condition
- Coating chemistry
- Cleanliness requirements
- Product specification
- Customer requirements
Some validated processes may coat over suitable no-clean residues, while other products require cleaning.
The surface condition should be evaluated before coating-process approval.
Should PCBA Testing Be Completed Before Coating?
Testing before coating is often practical because repair can become more difficult after coating.
A possible process is:
SMT/THT Assembly → Inspection → Electrical/Functional Testing → Cleaning/Preparation → Conformal Coating → Curing → Final Inspection
The exact sequence depends on the product and factory process.
Standalone Machine vs Complete Conformal Coating Line
A standalone machine can be suitable when:
- Production volume is lower
- Manual loading is acceptable
- Factory space is limited
- Product changes are frequent
A complete inline system may be preferable when:
- Production volume is higher
- Continuous flow is required
- Labor reduction is important
- Traceability is required
- Coating and curing need to be integrated
The correct decision depends on the complete production requirement.
New vs Pre-Owned Conformal Coating Equipment
Manufacturers may also consider suitable pre-owned coating machines.
Potential advantages include:
- Lower initial investment
- Faster capacity expansion where equipment is available
However, inspect:
- Motion system
- Conveyor
- Valves
- Material tanks
- Tubing
- Seals
- Sensors
- Control computer
- Software
- Exhaust system
- Maintenance history
Material-contact components deserve particular attention because previous coating chemistry may affect compatibility with a new material.
How Much Does Conformal Coating Equipment Cost?
There is no universal fixed price.
Cost depends on:
- Working area
- Valve quantity
- Valve type
- Material supply system
- Conveyor
- Automation
- Inspection
- Barcode/traceability
- Curing equipment
- Brand
- New or pre-owned condition
A complete coating project may include:
Coating Machine + PCB Handling + Inspection + Flash-Off + Curing + Exhaust + Fixtures + Installation + Spare Parts + Training
Therefore, compare total project cost rather than coating-machine price alone.
Conformal Coating Equipment and PCBA Solutions from Fuliu Electronics
Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and services.
With extensive experience in the SMT industry, we specialize in dependable equipment, professional technical support, and complete SMT and PCBA production line solutions.
Our product portfolio includes SMT pick and place machines from Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens from Germany, MagicRay SPI/AOI inspection systems, automatic solder paste printers, supporting PCBA equipment, pre-owned SMT equipment, SMT spare parts, machine leasing, and maintenance services.
For manufacturers evaluating conformal coating automation, Fuliu Electronics can help review:
- PCB dimensions
- Component layout
- Coating and keep-out areas
- Coating chemistry
- Valve configuration
- Material supply
- Target capacity
- Flash-off
- Curing
- Inspection
- Existing production equipment
- Factory layout
- Automation level
- Investment budget
The objective is to evaluate the complete process:
PCBA Testing → Preparation → Selective Coating → Inspection → Flash-Off → Curing → Final Inspection
rather than selecting the coating machine independently.
As part of our global growth strategy, Fuliu Electronics is actively expanding into international markets, with key focus areas including India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe.
Conclusion
The best conformal coating equipment for PCBA manufacturing is not necessarily the fastest machine, the machine with the most valves, or the most highly automated production line.
For high-mix or lower-volume production, a flexible standalone selective coating machine may provide an efficient solution.
For medium- or higher-volume manufacturing, an integrated system combining automatic loading, selective coating, inspection, flash-off, curing, and unloading may provide better production flow.
Most importantly, evaluate the complete coating process rather than the coating machine alone.
If you are planning to automate conformal coating, upgrade an existing coating process, or build a complete PCBA conformal coating production line, Fuliu Electronics can help evaluate your PCB dimensions, coating material, component layout, keep-out areas, target capacity, curing process, inspection requirements, existing equipment, factory layout, automation target, and investment budget to develop a suitable conformal coating solution.
Frequently Asked Questions
There is no single configuration that is best for every factory. The equipment should match the PCB design, coating material, keep-outs, required capacity, curing method, inspection requirements, and automation level.
An automatic selective coating machine is commonly used to apply coating along programmed PCB areas while avoiding defined keep-out regions.
It depends on the application. Spray or film application may be efficient for larger areas, while needle dispensing can be useful for narrow or localized regions. Complex PCBAs may benefit from multiple valve types.
Yes, if the machine supports the required PCB sizes, component clearances, coating materials, and valve configuration. Recipe management can support high-mix production.
It can reduce masking in many applications, but tight keep-outs, material flow, or difficult component geometry may still require masking.
It depends on the coating chemistry. Processes may use ambient, thermal, UV, moisture, or dual-cure methods.
