As electronic devices continue to become smaller, lighter, and more powerful, SMT (Surface Mount Technology) manufacturing is moving toward increasingly miniaturized components. One of the smallest and most advanced passive components widely used today is the 01005 component.
For PCB assembly manufacturers, understanding 01005 technology is essential when producing smartphones, wearable devices, automotive electronics, medical equipment, and other compact electronic products.
However, handling 01005 components requires highly precise SMT equipment, optimized process control, and advanced inspection systems.
For overseas factory investors, electronics manufacturers, procurement managers, and engineers, selecting the right SMT production line for 01005 assembly is critical for achieving stable production quality and high manufacturing efficiency.
In this guide, we will explain what 01005 components are, why they matter, how they are assembled, and what equipment is required for reliable production.
What is a 01005 Component?

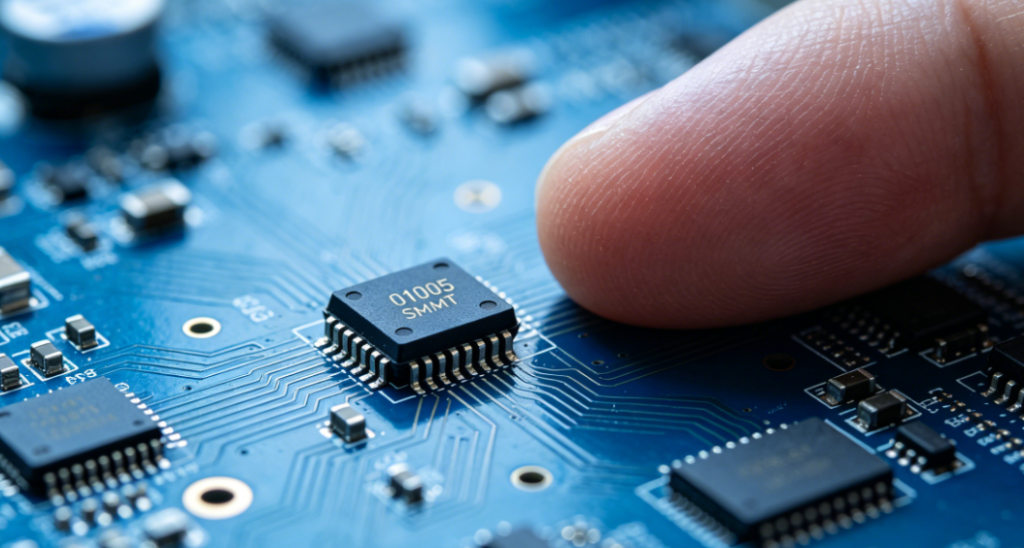

A 01005 component is an ultra-miniature surface mount electronic component commonly used in high-density PCB assembly.
The size of a 01005 component is approximately:
* 0.4 mm × 0.2 mm (metric)
* 0.016 inch × 0.008 inch (imperial)
Why 01005 Components are Important
Enables Smaller Electronic Products
Miniaturization allows manufacturers to design:
- thinner smartphones
- wearable devices
- compact automotive modules
- high-density medical electronics
Supports High-Density PCB Design
01005 components help maximize PCB space utilization.
Improves Product Functionality
Smaller components allow more circuits and functions within limited space.
Essential for Advanced Electronics Manufacturing
Modern consumer electronics increasingly rely on ultra-small components.
Industries Using 01005 Components
Consumer Electronics
- smartphones
- tablets
- smart watches
- wireless earbuds
Automotive Electronics
- ADAS systems
- sensors
- control modules
Medical Devices
- portable monitoring equipment
- wearable healthcare products
Communication Equipment
- 5G modules
- RF circuits
- compact communication boards
Challenges of 01005 SMT Assembly
Extremely High Placement Accuracy
Even tiny positioning errors can cause defects.
Solder Paste Printing Difficulty
Accurate solder paste volume is critical.
Component Handling Complexity
Tiny components are more sensitive to vibration and static electricity.
Inspection Challenges
Defects are difficult to detect manually.
SMT Equipment Required for 01005 Assembly

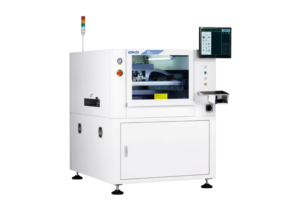

High-Precision Solder Paste Printer
Why It Matters
Accurate solder paste printing is the foundation of successful 01005 assembly.
Key Requirements
- stable stencil alignment
- high repeatability
- fine-pitch printing capability
SPI (Solder Paste Inspection)
Function
Checks solder paste volume, alignment, and consistency before placement.
Importance
Even minor solder paste defects can cause failure with 01005 components.
High-Speed Pick and Place Machine
Function
Places ultra-small components onto PCB pads with high precision.
Key Requirements
- high placement accuracy
- advanced vision alignment system
- stable feeder system
- vibration control
Modern high-end SMT machines support reliable 01005 placement with micron-level precision.
Reflow Oven (Critical for 01005 Production)
Function
Creates solder joints using controlled heating profiles.
Importance
01005 components are highly sensitive to temperature fluctuations.
Recommended Reflow Oven Features
For 01005 production, reflow ovens should provide:
- precise temperature control
- excellent thermal uniformity
- stable conveyor system
- optimized airflow design
Multi-zone reflow systems are commonly used to ensure consistent soldering quality.
AOI (Automatic Optical Inspection)
Function
Detects placement and soldering defects after reflow.
Why AOI is Essential
Manual inspection is nearly impossible for 01005 components.
AOI helps detect:
- missing components
- tombstoning
- solder bridges
- misalignment
X-Ray Inspection (Optional)
Used for advanced inspection and failure analysis in high-reliability applications.
How 01005 SMT Assembly Works
Step 1: Solder Paste Printing
Fine solder paste is applied to PCB pads.
Step 2: SPI Inspection
Paste quality is verified before placement.
Step 3: Component Placement
High-precision SMT machine places 01005 components accurately.
Step 4: Reflow Soldering
PCB passes through controlled heating zones.
Step 5: AOI Inspection
Inspection system checks final soldering quality.
Why Process Stability is Critical
For 01005 production, process variation must be minimized.
Critical factors include:
- temperature stability
- machine vibration
- stencil quality
- placement accuracy
- environmental control
Even small inconsistencies can significantly impact yield.
How to Choose SMT Equipment for 01005 Production
Placement Accuracy
Choose SMT machines specifically designed for ultra-small components.
Inspection Capability
SPI and AOI are mandatory for stable production.
Reflow Oven Performance
Precise thermal control is essential.
Software and Automation
Advanced software improves process optimization and traceability.
Supplier Experience
Experienced SMT solution providers help reduce setup risks.
Cost Considerations
01005-capable SMT production lines typically require higher investment due to:
- advanced placement systems
- precision inspection equipment
- high-end reflow ovens
However, these investments are necessary for high-yield production.
Common Mistakes in 01005 Assembly
Using Standard SMT Setup
Traditional equipment may not provide sufficient accuracy.
Poor Stencil Design
Incorrect stencil thickness causes soldering issues.
Inadequate Inspection
Skipping SPI or AOI increases defect rates.
Improper Reflow Profile
Incorrect temperature settings damage solder joints.
Practical Tips for Successful 01005 Production
- use high-quality solder paste
- maintain stable factory environment
- regularly calibrate equipment
- optimize stencil design
- combine SPI + AOI inspection
- train operators on fine-pitch assembly
Real-World Application Scenarios
Smartphone Manufacturing
High-density PCB assembly requires ultra-miniature components.
Wearable Devices
Compact designs rely heavily on 01005 technology.
Automotive Electronics
Advanced driver assistance systems require miniaturized circuits.
Medical Electronics
Portable medical devices demand compact PCB layouts.
Why Advanced SMT Solutions Matter
As component sizes continue to shrink, SMT production lines must become more precise and intelligent.
Working with an experienced SMT solution provider helps manufacturers:
- reduce production risk
- improve yield rate
- optimize equipment configuration
- achieve stable long-term production
Conclusion
01005 components represent the future of high-density PCB assembly and advanced electronics manufacturing. While they offer significant advantages in miniaturization and functionality, they also require highly precise SMT equipment and strict process control.
For manufacturers planning to enter advanced electronics production, investing in suitable SMT solutions is essential for maintaining competitiveness and product quality.
