Choosing the right SMT equipment is critical for achieving consistent LED quality and production efficiency.The LED industry is rapidly growing, driven by demand in lighting, displays, automotive applications, and smart electronics. As LED products become more advanced, manufacturers face increasing pressure to improve production efficiency, product consistency, and cost control.
Unlike standard PCB assembly, LED manufacturing has unique requirements such as:
- high thermal sensitivity
- large PCB sizes (LED panels, strips)
- high-volume production
- strict soldering quality requirements
This makes selecting the right SMT equipment critical.
For overseas factory investors, electronics manufacturers, procurement managers, and engineers, choosing the best SMT equipment for LED production directly impacts product quality, yield, and profitability.
In this guide, we will explore the essential SMT equipment for LED manufacturing and how to choose the right configuration for your factory.
What is SMT in LED Manufacturing?
SMT (Surface Mount Technology) in LED production refers to mounting LED chips and electronic components onto PCB boards using automated processes.
Typical LED SMT process includes:
- solder paste printing
- SPI inspection
- component placement
- reflow soldering
- AOI inspection
For some products, wave soldering is also used for through-hole components.
Why SMT Equipment Selection is Critical for LED Production
Thermal Sensitivity of LEDs
LED chips are highly sensitive to temperature. Poor thermal control during reflow can damage components.
Large PCB Sizes
LED panels and strips require equipment that supports large-format PCBs.
High Production Volume
LED manufacturing often involves mass production, requiring high-speed and stable equipment.
Consistent Soldering Quality
Uniform solder joints are essential for LED brightness and lifespan.
Complete SMT Equipment List for LED Manufacturing
Solder Paste Printer
Function
Applies solder paste onto PCB pads.
Key Requirements for LED:
- high precision printing
- stable stencil alignment
- support for large boards
SPI (Solder Paste Inspection)
Function
Checks solder paste quality before placement.
Importance:
Prevents defects early and ensures consistency.
Pick and Place Machine
Function
Places LED chips and components onto PCB.
Key Requirements:
- high-speed placement
- accuracy for small LED chips
- support for large PCB panels
Reflow Oven (Critical Equipment)
Function
Solders components using controlled heating profiles.
Recommended: JT Reflow Oven for LED Manufacturing
For LED production, choosing a reliable reflow oven is essential.

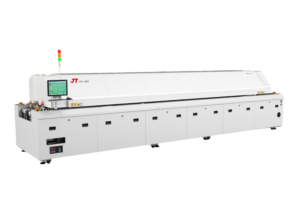

JT Multi-Zone Reflow Oven
Key Advantages:
- precise temperature control (critical for LED chips)
- excellent temperature uniformity
- supports large PCB sizes
- energy-efficient design
- stable continuous production
Best For:
- LED lighting
- LED display modules
- automotive LED systems
JT Nitrogen Reflow Oven (High-End Option)
Key Advantages:
- reduces oxidation during soldering
- improves solder joint quality
- enhances LED reliability and lifespan
Best For:
- high-end LED products
- export-oriented manufacturing
- high-reliability applications
- AOI (Automatic Optical Inspection)
Function
Detects defects after reflow soldering.
Importance:
Ensures LED placement accuracy and solder quality.
- Wave Soldering Machine (Optional)
Used for:
- power connectors
- large components
- mixed SMT + THT boards
Recommended: JT Wave Soldering Machine
JT Dual Wave Soldering Machine
Key Advantages:
- stable solder wave for consistent joints
- suitable for large LED boards
- energy-efficient design
- high reliability for continuous production

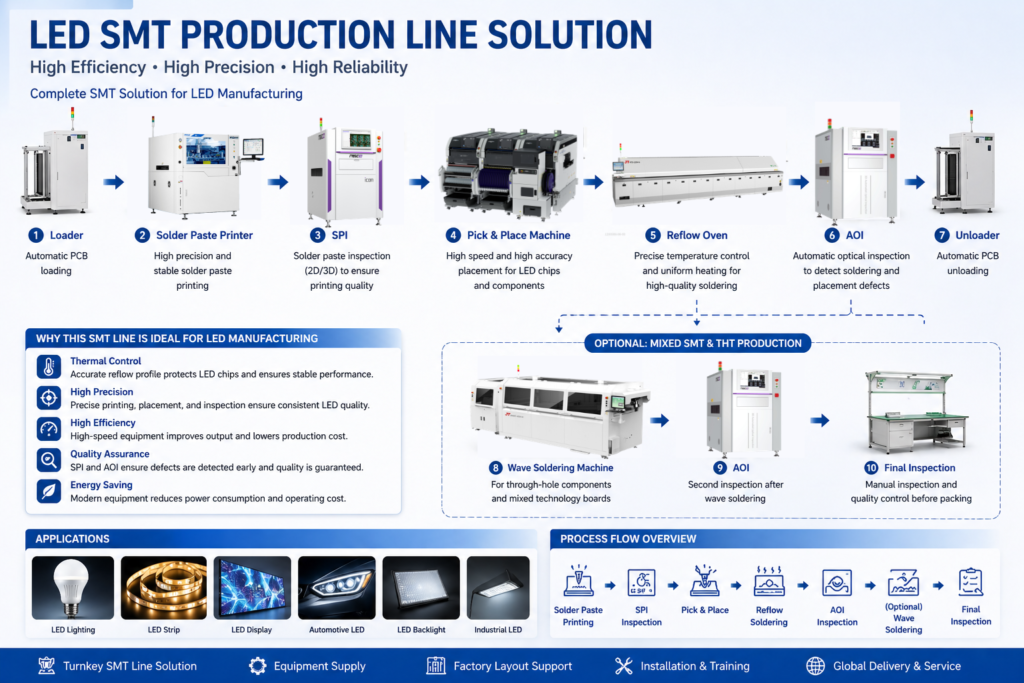

How SMT Equipment Works Together in LED Production
- solder paste printing
- SPI inspection
- pick and place
- reflow soldering (critical step)
- AOI inspection
- optional wave soldering
Each step must be optimized to ensure overall quality.
Key Factors When Choosing SMT Equipment for LED Manufacturing
PCB Size Compatibility
Ensure equipment supports large LED panels.
Temperature Control
Reflow oven must provide precise and stable thermal profiles.
Production Speed
High-speed machines are essential for mass production.
Equipment Stability
Continuous operation requires reliable machines.
Integration Capability
All machines must work seamlessly in the production line.
Cost Considerations
Typical SMT line cost for LED manufacturing:
- entry-level: $100,000 – $200,000
- mid-range: $200,000 – $400,000
- high-end: $400,000+
Key cost drivers:
- reflow oven quality
- pick and place machine speed
- inspection equipment (SPI, AOI)
Common Mistakes in LED SMT Equipment Selection
Ignoring Thermal Requirements
Poor reflow control can damage LEDs.
Choosing Equipment Not Suitable for Large PCBs
Leads to production inefficiency.
Underestimating Production Volume
Results in bottlenecks.
Skipping Inspection Equipment
Leads to higher defect rates.
Practical Tips for LED Manufacturers
- invest in high-quality reflow oven
- use SPI + AOI for quality control
- choose equipment compatible with large boards
- optimize production layout
- work with experienced SMT solution providers
Real-World Application Scenarios
LED Lighting Production
Requires high-volume, stable SMT lines.
LED Display Manufacturing
Needs precision placement and large PCB support.
Automotive LED Systems
Requires high reliability and strict quality control.
Why Choose Professional SMT Solutions for LED Manufacturing
Working with an experienced supplier helps:
- reduce setup risks
- optimize equipment selection
- improve production efficiency
- ensure long-term reliability
Conclusion
Selecting the best SMT equipment for LED manufacturing requires careful consideration of thermal control, PCB size, production volume, and equipment reliability.
A well-designed SMT production line ensures high-quality LED products, improved efficiency, and long-term profitability.
