Electric vehicles contain electronic systems for battery monitoring, power management, charging, communication, sensing, and control. Among these systems, the battery management system (BMS) plays an important role in monitoring and managing battery-related operating parameters.
Depending on the design and installation environment, some EV and BMS PCB assemblies may require additional protection against environmental exposure.
This is where conformal coating can become part of the PCBA manufacturing process.
A typical automated process may include:
PCBA Testing → Cleaning/Surface Preparation → Masking Where Required → Selective Conformal Coating → Coating Inspection → Flash-Off → Curing → Final Inspection
However, an effective conformal coating solution for EV and Battery Management System PCBs requires much more than selecting a coating machine.
Manufacturers should evaluate the PCB design, coating chemistry, connectors, test points, keep-out areas, component height, required coverage, curing method, production capacity, inspection criteria, traceability, and factory layout as one integrated process.
Why Is Conformal Coating Used on EV and BMS PCBs?
Depending on module location, enclosure design, and operating environment, EV electronics may experience conditions such as:
- Humidity
- Condensation
- Temperature variation
- Dust
- Certain contaminants
- Corrosive environments
Conformal coating creates a relatively thin protective layer over selected PCB surfaces.
Depending on the material and validated process, it can help provide protection against certain environmental influences.
However, coating performance depends on:
Material + Surface Condition + Coverage + Thickness + Curing + PCB Design + Operating Environment
Conformal coating should therefore be treated as one part of the overall product-protection strategy.
Does Every EV or BMS PCB Need Conformal Coating?
No.
Not every EV or battery management system PCB requires conformal coating.
The decision depends on factors such as:
- Module installation location
- Enclosure protection
- Environmental exposure
- PCB design
- Product requirements
- Customer specifications
- Material compatibility
- Repair strategy
A BMS located in a well-controlled enclosure can have different protection requirements from electronics exposed to more challenging environmental conditions.
The coating process should therefore follow actual product requirements rather than a universal EV manufacturing rule.
Conformal Coating vs Potting for EV Electronics
Conformal coating and potting are different processes.
Conformal coating applies a relatively thin layer that follows PCB and component contours.
Potting encapsulates electronics using a much thicker material.
Conformal coating can offer advantages such as:
- Lower material volume
- Lower added weight
- Easier access for some repair processes
- Selective application
Potting can provide a different level and type of encapsulation depending on the material and design.
Neither process universally replaces the other.
Typical EV/BMS PCBA Manufacturing Flow
A BMS or EV electronics production process may include:
Solder Paste Printing → SPI → SMT Placement → Reflow → AOI → THT Assembly Where Required → Soldering → Inspection → Electrical/Functional Testing → Surface Preparation → Conformal Coating → Curing → Final Inspection
Depending on the PCB, X-ray inspection may also be used for selected hidden solder joints where required.
Coating should be integrated into the complete manufacturing process rather than treated as an isolated final operation.
Step 1: Review the Actual BMS PCB
Before selecting coating equipment, collect:
- PCB dimensions
- PCB thickness
- Panel dimensions
- PCB photos
- Component layout
- Maximum component height
- Top-side and bottom-side geometry
- Coating drawing
- Keep-out areas
- BMS PCB architectures can vary significantly.
Do not assume that a coating solution developed for one BMS board can be transferred directly to another without process validation.
Step 2: Define the Required Coating Areas
The coating drawing should identify which areas require coating.
This information influences:
- Valve selection
- Application path
- Cycle time
- Masking
- Inspection
- Material consumption
For selective coating, the goal is not simply to cover as much of the PCB as possible.
The goal is to apply the required coating to the defined areas while protecting areas that must remain uncoated.
Step 3: Define Keep-Out Areas
EV and BMS PCBAs can contain areas where coating may be undesirable.
Depending on the design, these may include:
- Electrical connectors
- Test points
- Programming interfaces
- Contacts
- Switches
- Selected sensors
- Grounding/contact areas
- Mechanical interfaces
These keep-outs should be defined before programming the coating process.
Connectors Require Particular Attention
Connectors can be especially important during coating-process design.
Liquid coating can potentially move through:
- Capillary paths
- Connector openings
- Small gaps
- Component interfaces
Simply programming the coating valve to stop at the edge of a connector may not always provide sufficient protection.
Manufacturers should evaluate:
- Distance from coating path
- Material flow
- Valve type
- Application pressure
- PCB orientation
- Masking requirements
- using actual coated samples.
Can Automatic Selective Coating Eliminate Masking?
It can reduce masking, but not necessarily eliminate it.
Masking may still be required where:
- Keep-outs are very close to coating regions
- Material can flow toward connectors
- Tall components limit valve access
- Extremely sharp boundaries are required
- Sensitive electrical contacts need additional protection
The objective should be to minimize unnecessary masking while maintaining process requirements.
Step 4: Select the Coating Material
Common conformal coating material families include:
- Acrylic
- Silicone
- Polyurethane
- Epoxy
- UV-curable materials
- Specialized coating chemistries
The correct material depends on product requirements.
Manufacturers should consider:
- Environmental exposure
- Electrical requirements
- Temperature conditions
- Mechanical behavior
- Repair requirements
- Application method
- Cure process
- Material compatibility
Equipment should be configured after the coating material is selected.
Why Material Chemistry Affects Equipment Selection
Different coatings can have different:
- Viscosity
- Flow characteristics
- Pot life
- Pressure requirements
- Storage conditions
- Curing mechanisms
The coating chemistry can affect:
- Valve selection
- Tubing
- Seals
- Material tank
- Filters
- Cleaning procedure
- Exhaust
- Curing equipment
For this reason, a coating machine should not be purchased independently of the intended material.
Step 5: Select the Coating Valve
Different PCB areas may require different application methods.
Selective Spray
Spray application can provide efficient coverage for relatively open PCB areas.
However, overspray should be carefully evaluated near sensitive keep-outs.
Film Coating
Film-style application can provide controlled bands of material along programmed paths.
It can be useful for larger coating regions where controlled coverage and throughput are required.
Needle Dispensing
Needle dispensing can be useful for:
- Narrow areas
- Localized coating
- Difficult component geometry
- Small targeted regions
However, using a needle to coat large PCB areas can significantly increase cycle time.
Multi-Valve Configuration
Complex EV or BMS PCBAs may benefit from:
Film/Spray Valve + Needle Dispensing Valve
One valve can cover larger regions while another processes difficult localized areas.
The correct number of valves should be determined by the actual PCB rather than the assumption that more valves always provide a better solution.
Component Height and Valve Accessibility
BMS and other EV electronics can contain:
- Connectors
- Capacitors
- Relays
- Transformers
- Inductors
- Heat sinks
- THT components
Tall components can restrict coating-valve movement.
Machine evaluation should therefore include:
- Maximum component height
- Valve approach direction
- Nozzle clearance
- Adjacent component spacing
- Required coating angle
A machine that supports the PCB dimensions may still be unsuitable if the valve cannot access the required coating regions.
Step 6: Determine Whether Cleaning Is Required
PCB surface condition can affect coating adhesion and film formation.
Potential residues include:
- Flux residues
- Dust
- Handling contamination
- Oils
- Other process contaminants
However, there is no universal rule that every BMS PCB must be cleaned before coating.
Cleaning requirements depend on:
- Flux chemistry
- Surface cleanliness
- Coating chemistry
- Product specification
- Customer requirements
- Validated manufacturing process
Some suitable no-clean processes may be compatible with direct coating after validation, while other products may require cleaning.
Step 7: Complete Testing Before Coating Where Appropriate
Testing before coating is often practical because repair becomes more difficult once the PCB has been coated and cured.
A manufacturing sequence may be:
PCBA Assembly → Inspection → Programming → Electrical/Functional Testing → Surface Preparation → Coating
Depending on the BMS or EV electronics design, testing can include:
ICT
- Programming
- Functional testing
- Communication testing
- Product-specific electrical tests
The actual test strategy should follow the product design and applicable requirements.
Step 8: Automatic Selective Coating
An automatic selective coating machine uses programmed motion to apply material to defined PCB areas.
Potential advantages include:
- Repeatable coating paths
- Controlled material placement
- Reduced operator dependence
- Recipe management
- Reduced unnecessary material application
- Inline production capability
However, automation does not automatically guarantee coating quality.
A stable process depends on:
PCB Cleanliness + Material + Valve + Machine + Programming + Curing + Inspection
Coating Accuracy: Look Beyond the Machine Specification
Machine positioning accuracy is only one factor affecting the final coating boundary.
Actual results also depend on:
- Material viscosity
- Material spreading
- Valve type
- Nozzle geometry
- Valve height
- Pressure
- Travel speed
- PCB flatness
- Component geometry
- Surface condition
For critical BMS keep-out areas, sample coating trials using the actual PCB and material are valuable.
Step 9: Inspect the Coating
Inspection criteria may include:
- Coverage
- Missed areas
- Overspray
- Keep-out contamination
- Bubbles
- Pinholes
- Pooling
- Dewetting
- Inspection can be:
- Manual
- UV-assisted
- Automated where appropriate
The inspection method should be selected according to production volume and defined acceptance criteria.
UV Tracer Inspection
Some coating materials include fluorescent tracers.
Under suitable UV illumination, these can make coating coverage easier to see.
This can help detect:
- Missing regions
- Coverage boundaries
- Certain application inconsistencies
However, UV fluorescence alone does not prove:
- Correct coating thickness
- Adhesion
- Complete curing
- Long-term reliability
Additional process controls may still be required.
Step 10: Flash-Off
Some coatings require flash-off before entering the curing process.
Flash-off can allow volatile components or solvents to dissipate according to the material process requirements.
A production line may use:
- Flash-off conveyor
- Controlled buffer
- Dedicated waiting section
Flash-off requirements should follow the coating material and validated process.
Step 11: Select the Correct Curing Process
Curing methods can include:
- Ambient curing
- Thermal curing
- UV curing
- Moisture curing
- Dual-cure processes
The correct curing equipment depends on the coating chemistry.
There is no universal curing temperature or time suitable for all EV and BMS conformal coatings.
Thermal Curing
Thermal curing equipment should be evaluated based on:
- Coating material
- Required temperature
- Residence time
- PCB dimensions
- Component limitations
- Conveyor speed
- Exhaust
- Required production capacity
Actual PCB temperature behavior should be considered during process validation.
UV Curing and Shadow Areas
UV-compatible materials can support rapid processing.
However, complex BMS PCBAs may contain tall components that create shadow areas.
For example:
- Connectors
- Relays
- Capacitors
- Transformers
If UV light cannot reach coated regions beneath or beside these components, curing strategy becomes important.
Depending on the material, a secondary or dual-cure mechanism may address these areas.
Follow the coating material’s process requirements.
Step 12: Final Inspection
After curing, final inspection can check:
- Coating coverage
- Visible coating defects
- Keep-out cleanliness
- General coating condition
Product-specific acceptance requirements
Where required, additional testing can be performed after coating.
Common Conformal Coating Defects on EV/BMS PCBAs
Overspray
Potential factors include:
- Incorrect valve selection
- Excessive pressure
- Incorrect valve height
- Poor programming
- Material behavior
Bubbles
Investigate:
- Material handling
- Air introduction
- Application conditions
- Coating quantity
- Surface condition
Pinholes
Possible contributors include:
- Surface contamination
- Material characteristics
- Application conditions
- Film formation
- Cure conditions
Dewetting
Investigate:
- Flux residues
- Surface contamination
- Material compatibility
- Surface preparation
Pooling
Review:
- Material quantity
- PCB geometry
- Viscosity
- Valve path
- Travel speed
Defect troubleshooting should consider the complete process rather than only changing machine parameters.
Double-Sided Coating for BMS PCBs
Some PCBAs may require coating on both sides.
A double-sided process can involve:
First-Side Coating → Flash-Off/Cure as Required → Board Flipping → Second-Side Coating → Curing → Final Inspection
Important considerations include:
- First-side coating condition
- Board handling
- PCB support
- Component height
- Flipping method
- Total cycle time
For higher-volume production, automatic board-flipping equipment may be considered.

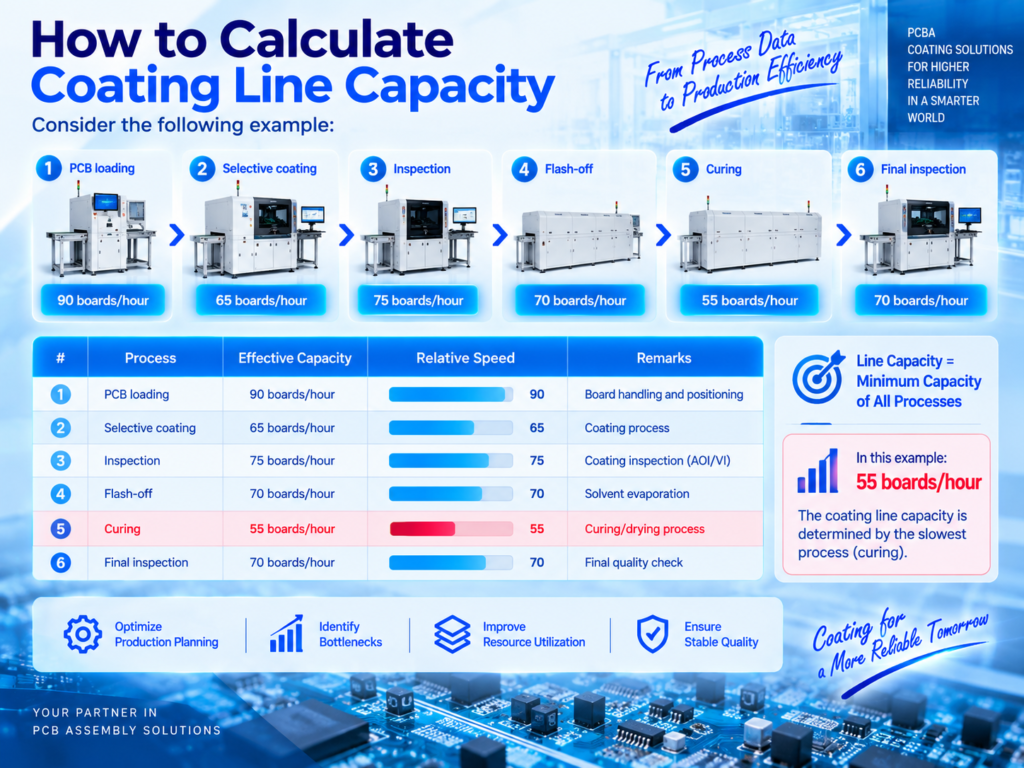

How to Calculate Coating Line Capacity
Consider the following example:
The finished-line output is approximately limited to 55 boards per hour by the curing process, assuming no parallel capacity or other constraints.
Installing a coating machine capable of 90 boards per hour would not automatically increase finished output.
Curing Time Is Not the Same as Line Takt
Suppose:
Coating cycle = 40 seconds
Curing residence time = 12 minutes
A conveyorized curing system can contain multiple PCBAs simultaneously.
Therefore, the line does not necessarily produce only one board every 12 minutes.
Curing capacity depends on:
Residence Time + Conveyor Speed + PCB Pitch + Available Process Length
This is an important calculation when designing a complete automated coating line.
High-Mix EV/BMS Coating Production
A manufacturer producing multiple PCB models may prioritize:
- Flexible programming
- Recipe storage
- Adjustable conveyor width
- Multi-valve capability
- Fast changeover
- Flexible inspection
A possible configuration is:
Manual Loading → Automatic Selective Coating → UV/Manual Inspection → Flash-Off → Curing → Final Inspection
This can provide flexibility without excessive automation.
Medium-Volume Automatic Coating Line
A medium-volume production line may use:
Automatic Loader → Selective Coating → Inspection → Flash-Off Conveyor → Curing → Final Inspection → Unloader
Optional functions can include:
- Barcode identification
- Automatic width adjustment
- Buffers
- Recipe management
- Production-data recording
Higher-Volume EV/BMS Conformal Coating Line
For stable higher-volume production, manufacturers may evaluate:
Automatic Loader → Barcode Identification → Automatic Selective Coating → Automatic/Assisted Inspection → Flash-Off → Inline Curing → Final Inspection → Automatic Unloader
The goal should be balanced finished-line capacity rather than maximum coating-machine speed.
Traceability for EV and BMS Coating Processes
Depending on customer and manufacturing requirements, process records may include:
- PCB serial number
- Product model
- Coating recipe
- Machine
- Process time
- Material lot
- Inspection result
- Curing process information
Barcode identification can connect the PCB with its manufacturing data.
The required level of traceability should be defined before line integration.
Material Management
Stable coating production also requires controlled material handling.
Consider:
- Material container
- Pressure system
- Pump
- Filters
- Tubing
- Seals
- Agitation where required
- Material level
- Pot life
- Storage conditions
All material-contact components should be compatible with the selected coating chemistry.
Exhaust and Factory Requirements
Depending on the coating chemistry and equipment, the production area may require:
- Exhaust
- Ventilation
- Electrical power
- Compressed air
- Network connections
Material safety information, equipment requirements, and applicable local requirements should be reviewed during factory planning.
Maintenance of Automatic Coating Equipment
Maintenance can include:
- Valve cleaning
- Nozzle cleaning
- Needle inspection
- Filter replacement
- Tubing inspection
- Conveyor maintenance
- Sensor cleaning
- Motion-system inspection
- Exhaust maintenance
Before purchasing equipment, manufacturers should ask about:
- Cleaning frequency
- Cleaning procedure
- Consumables
- Recommended spare parts
- Maintenance time
- Technical support
New vs Pre-Owned Conformal Coating Equipment
Suitable pre-owned equipment may provide another investment option.
However, inspect:
- Machine condition
- Motion system
- Conveyor
- Valves
- Tanks
- Tubing
- Seals
- Sensors
- Controls
- Software
- Exhaust
Maintenance history
Spare-parts availability
Previous coating chemistry is particularly important because material-contact components may require cleaning or replacement before changing materials.
EV/BMS PCBA Manufacturing Solutions from Fuliu Electronics
Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and services.
With extensive experience in the SMT industry, we specialize in dependable equipment, professional technical support, and complete SMT and PCBA production line solutions.
Our product portfolio includes SMT pick and place machines from Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens from Germany, MagicRay SPI/AOI inspection systems, automatic solder paste printers, supporting PCBA equipment, pre-owned SMT equipment, SMT spare parts, machine leasing, and maintenance services.
For manufacturers planning EV and BMS electronics production, Fuliu Electronics can help evaluate the complete PCBA process, including:
SMT Assembly → THT Assembly Where Required → Inspection → Testing → Conformal Coating → Curing → Final Inspection
As part of our global growth strategy, Fuliu Electronics is actively expanding into international markets, with key focus areas including India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe.
Conclusion
A successful conformal coating solution for EV and Battery Management System PCBs should be designed around the complete PCBA manufacturing process rather than the coating machine alone.
A typical flow may be:
PCBA Assembly → Inspection and Testing → Surface Preparation → Masking Where Required → Selective Coating → Inspection → Flash-Off → Curing → Final Inspection
For high-mix EV electronics manufacturing, flexible selective coating equipment with fast recipe changeover may provide an effective solution.
For stable higher-volume BMS production, manufacturers can evaluate an integrated line combining automatic PCB loading, barcode identification, selective coating, inspection, flash-off, inline curing, final inspection, and unloading.
Most importantly, coating performance depends on the complete interaction between PCB design, surface condition, coating chemistry, application equipment, curing, and inspection. A more advanced coating machine cannot compensate for an unsuitable material, contaminated PCB surface, inaccessible geometry, or poorly defined keep-out requirements.
If you are planning a new EV/BMS conformal coating line, upgrading from manual coating, or integrating protective coating into an existing SMT/THT PCBA production process, Fuliu Electronics can help evaluate your PCB dimensions, component layout, coating material, connectors and keep-outs, target capacity, curing process, inspection requirements, existing equipment, factory layout, automation target, and investment budget to develop a suitable PCBA manufacturing solution.
Frequently Asked Questions
Depending on the design and environment, conformal coating can help protect PCB surfaces from moisture, humidity, condensation, dust, and certain contaminants.
No. The requirement depends on module location, enclosure, environmental exposure, PCB design, customer specifications, and product requirements.
There is no universal best material. Acrylic, silicone, polyurethane, epoxy, UV-curable, and specialized coatings have different properties. Selection should follow actual product requirements.
It can precisely control application areas, but connector geometry, material flow, valve type, and keep-out distance must be evaluated. Masking may still be required.
Not universally. Cleaning depends on flux chemistry, surface condition, coating material, product specification, and the validated manufacturing process.
Testing before coating is often practical because repair can become more difficult afterward. The exact process sequence should follow the product manufacturing plan.
