A turnkey SMT line is a complete PCB assembly production solution delivered by a single supplier, allowing customers to begin manufacturing immediately after installation and commissioning.
Rather than purchasing individual machines separately, manufacturers receive an integrated solution that includes:
- Equipment selection
- Factory layout design
- Production line configuration
- Installation
- Commissioning
- Process optimization
- Operator training
- Technical support
- Maintenance services
The supplier assumes responsibility for ensuring that every machine operates together as one complete production system.
What Is a Turnkey SMT Line?
The term turnkey means the factory is delivered in a condition that allows the customer to “turn the key” and begin production.
Instead of coordinating multiple equipment manufacturers, installation teams, and software providers, customers receive one complete solution from a single project partner.
This significantly simplifies project management and reduces implementation risks.
What Equipment Is Included in a Turnkey SMT Line?
Although configurations vary depending on production requirements, a standard turnkey SMT line typically includes the following equipment.
PCB Loading System
The production process begins with an automatic PCB loader, which feeds bare PCBs into the SMT production line while maintaining stable board handling.
Automatic Solder Paste Printer
The solder paste printer accurately deposits solder paste onto PCB pads using precision stencils.
Consistent solder paste printing is critical for achieving reliable solder joints.
SPI (Solder Paste Inspection)
SPI equipment verifies solder paste quality by measuring:
- Paste volume
- Paste height
- Printing position
- Area coverage
Detecting printing defects early helps reduce downstream manufacturing issues.
High-Speed Pick and Place Machine
The pick and place machine automatically mounts electronic components onto the PCB.
Modern systems can place tens of thousands of components per hour with exceptional accuracy.
Precision Chip Mounter
Some production lines include an additional precision placement machine dedicated to fine-pitch ICs, BGAs, QFNs, and other complex packages.
Reflow Soldering Oven
The reflow oven permanently solders components to the PCB through precisely controlled temperature profiles.
Temperature stability directly affects solder joint reliability.
AOI Inspection Machine
Automated Optical Inspection verifies assembly quality by detecting defects such as:
- Missing components
- Wrong polarity
- Component rotation
- Solder bridges
- Tombstoning
- Component offset
AOI significantly improves first-pass yield and reduces manual inspection.
X-Ray Inspection (Optional)
For complex packages such as BGA and QFN, X-ray inspection evaluates hidden solder joints that cannot be inspected optically.
ICT/FCT Testing
Electrical testing verifies circuit functionality before products proceed to final assembly or shipment.
PCB Cleaning System (Optional)
Some industries require PCB cleaning to remove flux residues and contaminants after soldering.
Cleaning is especially important for automotive, aerospace, telecommunications, and medical electronics.
PCB Unloader
The finished PCB is automatically unloaded for packaging, testing, or downstream assembly.
Additional Turnkey Services
A complete turnkey project includes far more than equipment supply.
Professional turnkey providers often offer:
- Factory layout planning
- Utility planning
- Conveyor integration
- Air supply design
- Electrical installation
- Software configuration
- MES integration
- Barcode traceability
- Process optimization
- Preventive maintenance
- Spare parts planning
- Production consulting
These services ensure that the entire production system operates efficiently from the first day.

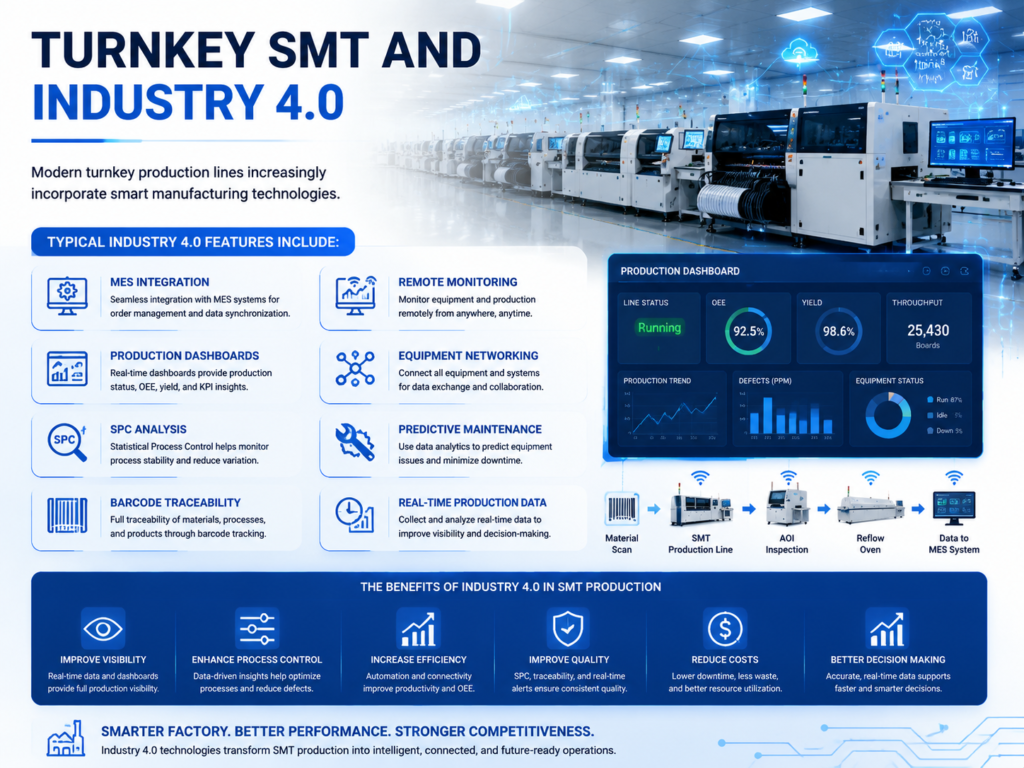

Turnkey SMT and Industry 4.0
Modern turnkey production lines increasingly incorporate smart manufacturing technologies.
How to Choose a Turnkey SMT Supplier
Selecting the right supplier is as important as selecting the equipment itself.
Consider the following factors:
- Industry experience
- Engineering capabilities
- Equipment portfolio
- Factory planning expertise
- Technical support network
- Spare parts availability
- Installation experience
- Training services
- Global project references
- Long-term maintenance support
An experienced turnkey partner can significantly reduce implementation risk and improve long-term production performance.
Common Mistakes When Building an SMT Factory
Manufacturers should avoid these common pitfalls.
Purchasing Equipment Based Only on Price
Lower-cost machines may increase maintenance costs and reduce production efficiency.
Ignoring Future Capacity Expansion
Production requirements often grow over time. Choose equipment that supports future upgrades.
Overlooking Factory Layout
Poor material flow can create bottlenecks and reduce overall productivity.
Choosing Multiple Suppliers Without Integration Experience
Compatibility issues between different machines may increase commissioning time and maintenance complexity.
Underestimating Training Requirements
Well-trained operators and engineers are essential for maximizing equipment performance.
Why Choose Fuliu Electronics?
Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and comprehensive technical services.
With extensive experience in the SMT industry, Fuliu Electronics supplies complete turnkey SMT production line solutions featuring internationally recognized brands such as Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens, MagicRay SPI/AOI inspection systems, automatic solder paste printers, refurbished SMT equipment, SMT spare parts, equipment leasing, maintenance services, and comprehensive turnkey engineering support.
Serving customers across India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe, Fuliu Electronics provides factory layout planning, equipment integration, installation, commissioning, process optimization, operator training, preventive maintenance, and long-term technical support to help manufacturers build reliable and efficient SMT production facilities.
Conclusion
A turnkey SMT line is much more than a collection of machines—it is a fully integrated manufacturing solution designed to help electronics manufacturers launch production quickly, efficiently, and with minimal risk. By combining equipment supply, engineering expertise, installation, software integration, training, and after-sales support into one comprehensive package, turnkey solutions simplify factory construction while improving long-term productivity and product quality.
Whether you are establishing a new PCB assembly factory, expanding manufacturing capacity, or upgrading existing production facilities, choosing an experienced turnkey supplier can reduce implementation challenges, accelerate time-to-production, and provide a stronger foundation for future growth.
Frequently Asked Questions
A turnkey SMT line is a complete PCB assembly production solution delivered by a single supplier, including equipment, installation, commissioning, training, technical support, and process optimization.
Typical equipment includes a PCB loader, solder paste printer, SPI system, pick and place machines, reflow oven, AOI inspection machine, conveyors, PCB unloader, and optional X-ray inspection, cleaning, and testing equipment.
Turnkey solutions simplify project management, reduce engineering risk, improve equipment compatibility, accelerate factory setup, and provide unified technical support.
Yes. Turnkey solutions are ideal for startups and SMEs because they provide engineering expertise and integrated systems without requiring extensive in-house technical resources.
Absolutely. Equipment configuration, production capacity, automation level, inspection systems, and software integration can all be customized to meet specific manufacturing requirements.
Most turnkey suppliers provide commissioning, operator training, preventive maintenance, spare parts supply, software support, process optimization, and long-term after-sales service.
