DIP assembly remains an important part of PCB manufacturing, especially for products containing connectors, terminals, relays, transformers, switches, large capacitors, and other through-hole components.
While SMT production is already highly automated in many factories, DIP/THT assembly often still depends heavily on manual labor.
Operators may be responsible for:
Preparing components
Inserting THT parts
Moving PCBs between stations
Checking component orientation
Loading wave soldering machines
Inspecting solder joints
Transferring boards to testing
As labor costs increase and manufacturers look for more stable production, many PCB assembly factories ask the same question:
How can we automate a DIP assembly line?
The answer is not simply to replace every operator with a machine.
Effective DIP assembly line automation requires manufacturers to analyze the entire production process and automate the stages where automation provides measurable benefits in capacity, consistency, labor efficiency, and quality control.
A typical automated DIP production flow may look like:
Automatic PCB Loading → THT Component Preparation → Automatic/Semi-Automatic Insertion → Inspection → Automatic PCB Transfer → Fluxing → Preheating → Wave/Selective Soldering → Cooling → Automated Inspection → Testing → PCB Unloading
How to Automate a DIP Assembly Line
This guide explains how to automate a DIP assembly line step by step and how to avoid common automation mistakes.
What Does DIP Assembly Line Automation Mean?
DIP assembly line automation means reducing unnecessary manual operations by integrating machines, conveyors, control systems, and inspection equipment throughout the through-hole PCB assembly process.
Automation can be applied to:
- PCB loading
- PCB transportation
- Component preparation
- THT insertion
- Pre-solder inspection
- Flux application
- Preheating
- Wave soldering
- Selective soldering
- Cooling
- Post-solder inspection
- Testing
- Barcode scanning
- Traceability
- PCB unloading
However, the ideal automation level depends on the product.
Some factories may benefit from a fully automated line, while others may achieve better return on investment by automating only material handling and soldering while keeping THT insertion manual.
Why Automate a DIP Assembly Line?
There are several reasons manufacturers consider DIP automation.
Reduce Repetitive Manual Handling
Operators frequently move PCBs between:
- Insertion stations
- Inspection stations
- Soldering equipment
- Testing stations
Automatic conveyors and loaders can reduce repetitive handling.
Improve Production Consistency
Automated machines can follow programmed parameters more consistently than purely manual processes.
This can be useful for:
- Component insertion
- Flux application
- Conveyor speed
- Soldering conditions
- Inspection
- Traceability
- Increase Production Capacity
Automation can reduce delays between process stages and improve overall line flow.
However, a faster machine does not automatically mean a faster production line.
The complete process must be balanced.
Reduce Labor Dependence
Labor availability can become a challenge in high-volume electronics manufacturing.
Automation can reduce repetitive tasks while allowing operators to focus on:
- Material preparation
- Quality control
- Maintenance
- Process management
- Complex component insertion
- Improve Traceability
Automated production systems can integrate barcode scanning and production data collection.
Depending on factory requirements, this may help track:
- PCB identity
- Production time
- Process station
- Machine program
- Inspection result
- Test result
Step 1: Analyze the Existing DIP Process
Before buying automation equipment, manufacturers should first understand the current line.
Measure:
- Cycle time at each station
- Number of operators
- THT components per PCB
- Component preparation time
- Insertion time
- Soldering cycle time
- Inspection time
- Testing time
- Changeover time
- Rework rate
- Machine downtime
- Work-in-process
The objective is to identify the actual bottleneck.
For example, if manual THT insertion requires 90 seconds per PCB but the wave soldering machine can process a board every 30 seconds, upgrading the soldering machine will not significantly increase total output.
Insertion remains the limiting process.
Step 2: Automate PCB Loading and Transportation
PCB handling is one of the easiest areas to automate.
A basic automated handling system may include:
- PCB loader
- Conveyors
- Buffers
- Transfer units
- PCB unloader
These systems can connect production stages and reduce unnecessary manual transportation.
A typical flow may be:
PCB Loader → Insertion Conveyor → Inspection Conveyor → Wave Soldering → Cooling Conveyor → PCB Unloader
Benefits can include:
- Reduced manual handling
- More consistent material flow
- Lower risk of PCB damage
- Easier line balancing
- Better workstation organization
For factories upgrading from manual production, PCB handling is often a practical first automation step.
Step 3: Improve Component Preparation
Before automating insertion, manufacturers should improve THT component preparation.
Components may require:
- Lead cutting
- Lead forming
- Bending
- Sorting
- Orientation
- Kitting
Manual preparation can consume significant labor.
Supporting equipment can include:
- Lead cutting machines
- Component forming machines
- Resistor forming machines
- Capacitor processing machines
- Automatic feeders
- Material kitting systems
Good preparation also improves manual insertion efficiency if full automatic insertion is not practical.
Step 4: Decide Which THT Components Can Be Automatically Inserted
Not all through-hole components are equally suitable for automation.
This is one of the most important points in DIP line planning.
Components that may be easier to automate typically have:
- Standardized geometry
- Predictable lead positions
- Suitable packaging
- Stable orientation
- High usage frequency
More difficult components may include:
- Large transformers
- Irregular connectors
- Heavy components
- Components with flexible leads
- Mechanically complex parts
Therefore, manufacturers should classify the BOM into:
Automatically insertable components and Components that should remain manual
This often leads to a hybrid production model.

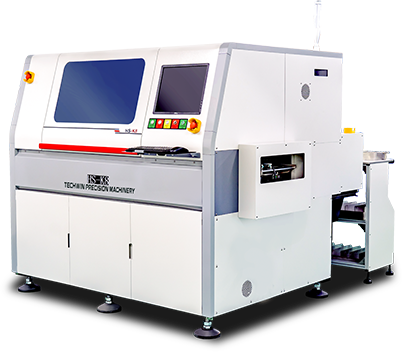

Step 5: Introduce Automatic THT Insertion
Automatic THT insertion equipment can reduce repetitive manual placement for suitable components.
Depending on machine type, the system may perform:
- Component feeding
- Lead cutting
- Lead forming
- Component positioning
- PCB positioning
- Automatic insertion
Automatic insertion is most attractive when:
- Production volume is high
- Component types repeat frequently
- Products are relatively stable
- Packaging supports automatic feeding
For high-mix, low-volume products, full automation may not provide sufficient ROI.
Step 6: Use Semi-Automatic Insertion Where Full Automation Is Not Practical
Automation does not need to be all or nothing.
Semi-automatic systems can assist operators with:
- Component selection
- PCB positioning
- Work instructions
- Material indication
- Insertion guidance
A hybrid system might use:
Automatic Insertion for Standard Components → Manual Insertion for Irregular Components
This approach can provide a strong balance between:
- Flexibility
- Labor reduction
- Equipment investment
- Changeover time
For many EMS manufacturers, this is more practical than attempting complete automation.
Step 7: Add Pre-Solder Inspection
As line speed increases, insertion errors can become more expensive if they reach the soldering stage.
Pre-solder inspection should therefore be strengthened.
Typical checks include:
- Missing components
- Wrong component
- Incorrect polarity
- Incorrect orientation
- Bent leads
- Improper insertion depth
Inspection can remain manual or be assisted by automated vision depending on the product.
The goal is to detect problems before soldering.
Step 8: Automate Fluxing
Manual flux application is difficult to control consistently in higher-volume production.
Modern wave soldering lines commonly integrate automatic spray fluxing.
Key parameters include:
- Flux quantity
- Spray width
- Coverage
- Conveyor speed
Automation helps improve repeatability and reduce unnecessary material use.
Step 9: Automate Preheating
Preheating is normally integrated into a wave soldering or selective soldering system.
The thermal process should be developed based on:
- PCB thickness
- Copper distribution
- Component thermal mass
- Flux chemistry
- Solder alloy
- Conveyor speed
Automated temperature control helps maintain repeatable conditions during continuous production.
Step 10: Integrate Automatic Wave Soldering
Wave soldering is one of the most important automation stages in many DIP production lines.
A modern wave soldering system typically combines:
- Spray fluxing
- Preheating
- Conveyor transport
- Molten solder wave
- Cooling
- Recipe control
Wave soldering is particularly suitable when:
- Many THT joints must be soldered
- PCB design supports wave soldering
- Production volume is medium or high
- Continuous line flow is required
The machine should be selected according to actual PCB width, thermal requirements, target capacity, and factory layout.
Step 11: Consider Selective Soldering for Mixed SMT/THT Products
Not every automated DIP line should use wave soldering.
Selective soldering may be more appropriate when:
Only a limited number of THT joints require soldering
The PCB has many bottom-side SMT components
Certain areas should avoid solder contact
Localized soldering is required
A selective soldering system can automatically perform:
- Selective fluxing
- Preheating
- Programmable soldering
- PCB transfer
This can be particularly useful for complex mixed-technology PCBs.
Step 12: Add Cooling and Automatic PCB Transfer
After soldering, PCBs need to move to inspection and testing.
A cooling conveyor can provide:
- Controlled PCB transfer
- Cooling time
- Buffering
- Separation between hot soldering equipment and inspection
Automatic transport helps maintain continuous flow and reduces operator handling.
Step 13: Automate Post-Solder Inspection
Inspection can become a bottleneck as line output increases.
Possible automated inspection options include:
- AOI
- Specialized THT inspection systems
- X-ray for selected structures
- Vision-based component inspection
- Potential inspection targets include:
- Missing components
- Incorrect position
- Orientation
- Selected solder defects
- Solder bridges
- Insufficient solder
Not every defect is equally easy to inspect automatically.
Factories should select inspection technology based on the actual PCB.
Step 14: Integrate Automated Testing
Testing is often overlooked during automation planning.
A highly automated insertion and soldering line can still experience a major bottleneck if each PCB requires long manual testing.
Depending on the product, testing may include:
- ICT
- Functional testing
- Power-on testing
- Programming
- Communication testing
- I/O testing
- Calibration
- Automation options may include:
- Automatic fixtures
- Barcode-based program selection
- Automated test sequences
- Multiple parallel test stations
- Automatic pass/fail sorting
Testing capacity should be included in the complete line cycle-time calculation.
Step 15: Add Barcode and Traceability Systems
For manufacturers requiring greater production visibility, barcode systems can be integrated into the line.
A PCB identifier can be scanned at different production stages.
Depending on the system, recorded data may include:
- PCB serial number
- Production date
- Machine
- Program
- Operator
- Inspection result
- Test result
Traceability requirements vary by product and customer, so the system should be designed according to actual production needs.
Step 16: Balance the Entire Automated Line
One of the biggest mistakes in DIP automation is optimizing only one machine.
Consider this simplified example:
- Automatic insertion: 35 seconds per PCB
- Manual insertion: 75 seconds per PCB
- Wave soldering: 40 seconds per PCB
- Inspection: 45 seconds per PCB
- Testing: 90 seconds per PCB
Even though several machines can process a board in less than 45 seconds, the line is still limited by testing at approximately 90 seconds per PCB unless parallel testing or another improvement is introduced.
This is why line balancing is essential.
Manufacturers should calculate capacity for:
- Preparation
- Insertion
- Soldering
- Inspection
- Testing
The objective is to improve good output from the entire line.
Manual vs Semi-Automatic vs Fully Automatic DIP Lines
The correct automation level depends on production economics.
Recommended Semi-Automatic DIP Line
For many manufacturers, a semi-automatic line is the most practical starting point.
A typical configuration can be:
Automatic PCB Loader → Insertion Conveyor → Manual/Semi-Automatic THT Insertion → Pre-Solder Inspection → Wave Soldering → Cooling Conveyor → PCB Unloader → Inspection → Testing
This configuration automates:
- PCB loading
- Material transportation
- Fluxing
- Preheating
- Soldering
- Cooling
- PCB unloading
while maintaining manual flexibility for complex THT components.
Recommended Highly Automated DIP Line
For stable, high-volume products, a more advanced configuration may be:
Automatic PCB Loader → Automatic THT Insertion → Manual/Semi-Automatic Special Component Insertion → Automated Inspection → Automatic Transfer → Wave/Selective Soldering → Cooling → Automated Inspection → Automated Testing → PCB Unloader
Optional systems can include:
- Buffers
- Barcode readers
- Traceability
- MES connection
- Automatic material feeding
- Parallel test stations
The final configuration should be based on real production data.
How to Reduce Labor Without Over-Automating
Factories sometimes assume that the goal of automation is zero operators.
This is not always economically practical.
A better strategy is to eliminate repetitive and low-value manual work first.
Examples include automating:
- PCB transportation
- Component preparation
- Standardized THT insertion
- Flux application
- Soldering
- Barcode scanning
- Basic inspection
Operators can then focus on:
- Complex insertion
- Quality decisions
- Material replenishment
- Process control
- Equipment maintenance
This can deliver meaningful productivity gains without excessive equipment investment.
How to Calculate Whether DIP Automation Is Worth the Investment
Automation should be evaluated using total cost and production requirements.
Consider:
- Current labor cost
- Number of operators
- Target capacity
- Production volume
- Product lifetime
- Equipment utilization
- Changeover frequency
- Maintenance
- Spare parts
- Floor space
- Energy
- Rework reduction
- Quality improvement
A simple evaluation should compare:
Automation Investment + Operating Cost
with potential benefits from:
Labor Reduction + Increased Capacity + Improved Utilization + Reduced Rework + Better Process Stability
The result depends on the factory’s real production conditions.
Common Mistakes When Automating a DIP Assembly Line
Automating Before Analyzing the Bottleneck
Buying machines without cycle-time data can create expensive idle equipment.
Trying to Automate Every THT Component
Some irregular components are more economical to insert manually.
Ignoring Component Packaging
Automatic insertion depends heavily on how components are supplied.
Ignoring Testing Capacity
Testing can become the new bottleneck after assembly is automated.
Poor Factory Layout
Unnecessary PCB travel reduces the benefit of automation.
Ignoring Changeover Time
A highly automated system may not be efficient if small batches require constant tooling and program changes.
Selecting Machines Only by Maximum Speed
Rated speed does not equal real line output.
The correct metric is stable production of acceptable boards.
Integrating DIP Automation with an SMT Line
Modern PCBA factories often combine SMT and THT production.
A complete process may be:
PCB Loader → Solder Paste Printer → SPI → SMT Pick and Place → Reflow → AOI → THT Insertion → Wave/Selective Soldering → Inspection → Testing
The SMT and DIP areas should be planned together.
Important factors include:
- SMT output
- DIP insertion capacity
- PCB buffer size
- Soldering throughput
- Testing capacity
- Product routing
- Factory layout
If SMT produces much faster than DIP can process, excessive work-in-process can accumulate between the two areas.
What Data Is Needed to Design an Automatic DIP Line?
Before configuring the line, manufacturers should prepare:
- PCB dimensions
- PCB thickness
- Panel format
- BOM
- THT component list
- Component packaging
- Number of THT components per PCB
- Components suitable for automatic insertion
- Target boards per hour
- Working shifts
- Product mix
- Changeover frequency
- Wave or selective soldering requirements
- Inspection requirements
- Testing requirements
- Factory layout
- Existing equipment
- Desired automation level
- Labor situation
- Budget
These data points help determine where automation can create the greatest value.
DIP Automation and PCBA Production Line Solutions from Fuliu Electronics
Established in 2014, Fuliu Electronics is dedicated to providing customers with high-quality PCBA intelligent manufacturing solutions and services.
With extensive experience in the SMT industry, we specialize in dependable equipment, professional technical support, and complete SMT and PCBA production line solutions.
Our product portfolio includes SMT pick and place machines from Fuji, Panasonic, ASM, Yamaha, JUKI, and Hanwha, together with ERSA reflow ovens from Germany, MagicRay SPI/AOI inspection systems, automatic solder paste printers, supporting PCBA equipment, pre-owned SMT equipment, SMT spare parts, machine leasing, and maintenance services.
For customers planning to automate or upgrade a DIP/THT production line, Fuliu Electronics can help evaluate:
- PCB dimensions
- BOM
- THT component types
- Component packaging
- Manual vs automatic insertion
- Wave vs selective soldering
- Target production capacity
- Product mix
- Testing requirements
- Existing equipment
- Factory layout
- Automation level
- Investment budget
Rather than simply adding machines, the goal is to develop a balanced production process covering SMT, THT insertion, soldering, inspection, testing, and material handling.
As part of our global growth strategy, Fuliu Electronics is actively expanding into international markets, with key focus areas including India, Vietnam, the Philippines, Indonesia, the Middle East, South Africa, and Europe.
Conclusion
So, how do you automate a DIP assembly line?
The most effective approach is to automate the complete process step by step rather than focusing on one machine.
A typical automation roadmap is:
Process Analysis → PCB Handling → Component Preparation → Automatic/Semi-Automatic THT Insertion → Pre-Solder Inspection → Automatic Wave/Selective Soldering → Cooling → Inspection → Testing → Traceability
The best automation level depends on:
- PCB design
- BOM
- THT component types
- Component packaging
- Production volume
- Product mix
- Labor availability
- Changeover frequency
- Testing requirements
- Factory layout
- Budget
For many manufacturers, the best solution is a hybrid DIP production line that automates repetitive processes while keeping flexible manual insertion for irregular components.
The goal should not simply be maximum automation. It should be a balanced, stable, and economically suitable PCBA production process.
If you are planning to upgrade a manual DIP line, introduce automatic THT insertion, automate wave or selective soldering, or build a complete SMT + DIP/THT production line, Fuliu Electronics can help evaluate your PCB dimensions, BOM, component packaging, target capacity, existing equipment, factory layout, automation level, and investment requirements to develop a suitable production solution.
Frequently Asked Questions
Yes, many stages can be automated, including PCB handling, selected THT insertion, soldering, inspection, and testing.
However, some irregular components may still be more practical to insert manually.
PCB loading, conveyors, wave soldering, and PCB unloading are often practical first steps because they reduce repetitive handling and create a more continuous production flow.
No.
Suitability depends on component geometry, lead structure, packaging, orientation, and production volume.
It can be suitable for standardized components used repeatedly across multiple products, but full automatic insertion may be less economical for very high-mix, low-volume production.
Factories can automate PCB handling, component preparation, standardized THT insertion, fluxing, soldering, inspection, and testing while retaining manual operators for complex components.
Yes.
Wave soldering is widely used in automated THT lines when many through-hole joints need to be processed efficiently and the PCB design supports the process.
