A must-have inspection technology for any modern SMT production line in 2026. In modern PCB assembly, product quality is more critical than ever. As electronic devices become smaller and more complex, even a minor defect can lead to product failure, customer complaints, or costly recalls.
This is why Automatic Optical Inspection (AOI) has become an essential part of SMT production lines.
For overseas factory investors, electronics manufacturers, procurement managers, and engineers, understanding the importance of AOI is crucial when building or upgrading an SMT production line.
In this guide, we will explain what AOI is, how it works, and why it plays a key role in ensuring PCB assembly quality and production efficiency.
What is AOI in PCB Assembly?
AOI (Automatic Optical Inspection) is a quality control technology that uses high-resolution cameras and image processing software to inspect PCB assemblies for defects.
It is commonly used in SMT production lines to detect issues such as:
- missing components
- misaligned components
- wrong components
- solder bridges
- insufficient or excessive solder
- polarity errors
AOI helps ensure that every PCB meets quality standards before moving to the next stage.
Why AOI is Important in PCB Assembly
Early Detection of Defects
AOI can identify defects immediately after soldering or even earlier in the process.
Early detection prevents defective boards from continuing down the production line.
Reduces Production Costs
Detecting defects early reduces:
- rework costs
- scrap rate
- labor cost
Fixing errors later in production is significantly more expensive.
Improves Product Quality
AOI ensures consistent inspection standards, eliminating human error.
This leads to higher product reliability and customer satisfaction.
Supports High-Speed Production
Manual inspection cannot keep up with modern SMT production speeds.
AOI systems can inspect thousands of components per second.
Enhances Process Control
AOI data can be used to:
analyze defect trends
optimize process parameters
improve overall production efficiency
How AOI Works in SMT Production

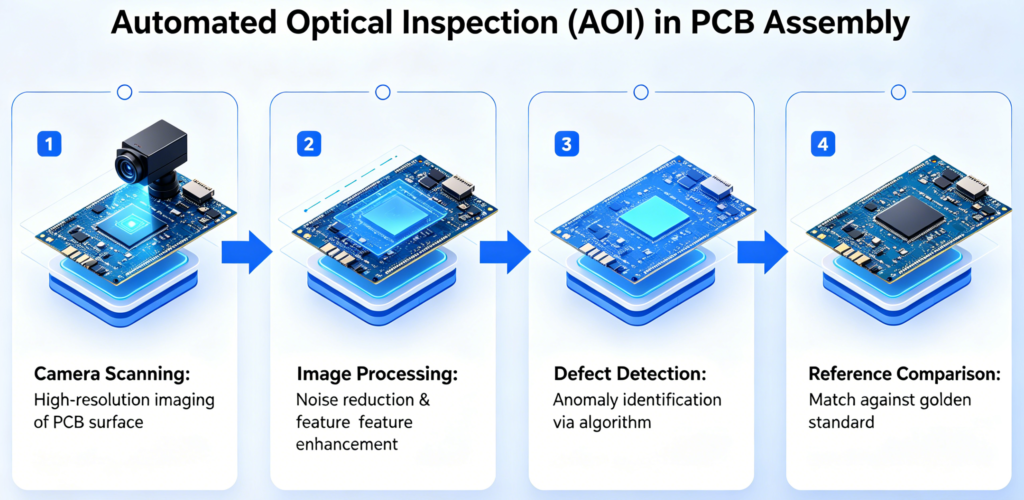

Step 1: Image Capture
High-resolution cameras capture images of the PCB.
Step 2: Image Comparison
The system compares captured images with a reference (golden board or CAD data).
Step 3: Defect Detection
Software analyzes differences and identifies potential defects.
Step 4: Classification and Reporting
Defects are categorized and reported to operators.
Step 5: Feedback Loop
Data can be fed back to upstream processes (e.g., printer or pick and place machine).
Types of AOI Systems

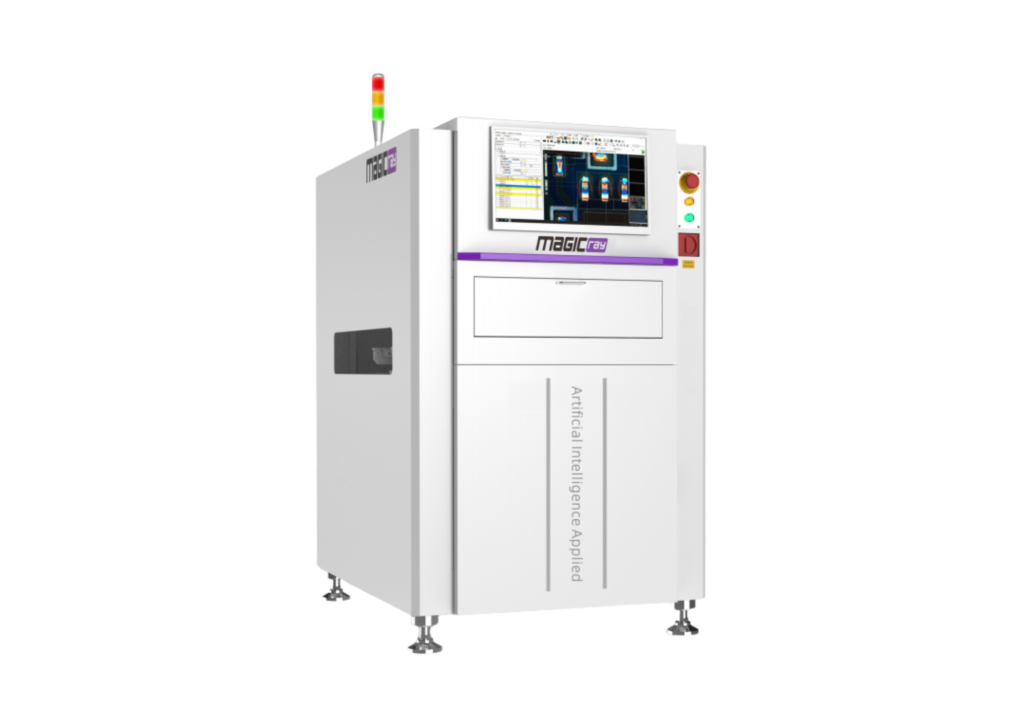

2D AOI
- uses 2D images
- lower cost
- suitable for simple PCB assemblies

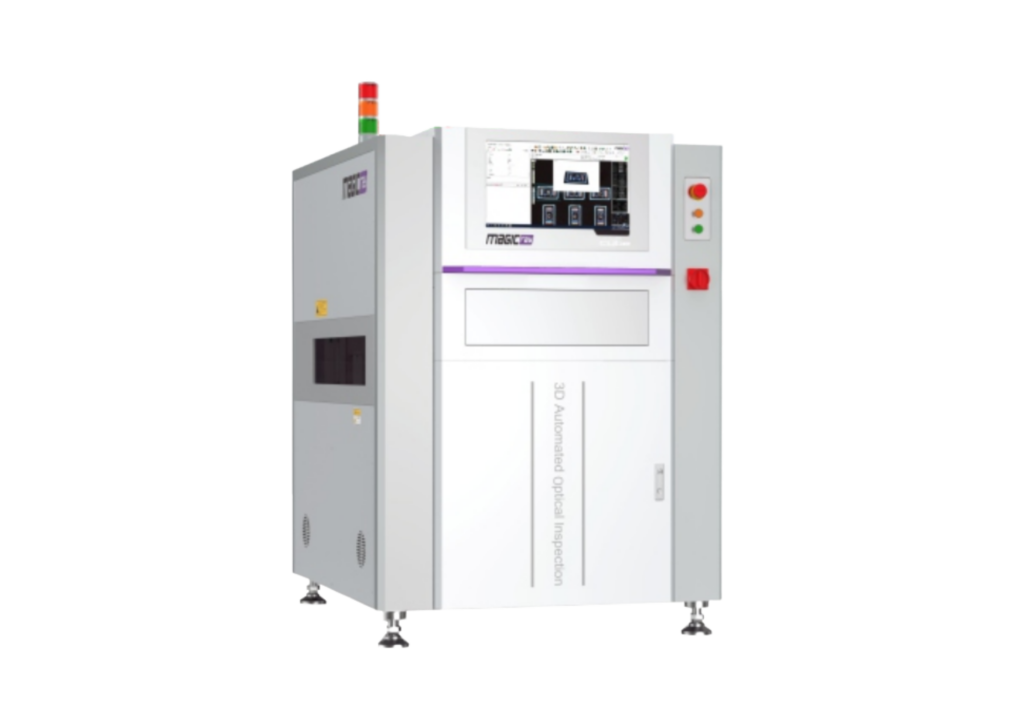

3D AOI
- measures height and volume
- more accurate
- better for complex PCBs and fine-pitch components

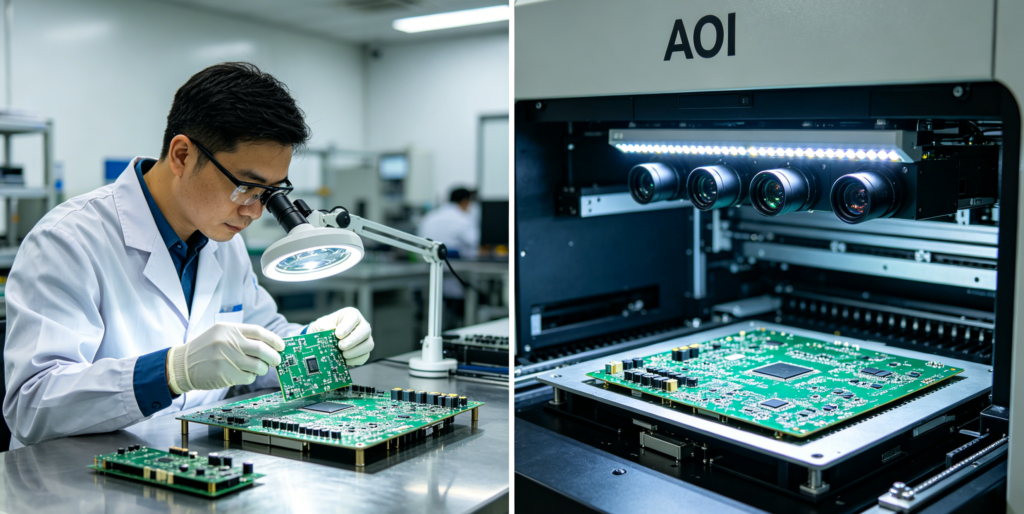

AOI vs SPI vs Manual Inspection
AOI
- detects component placement and soldering defects
- used after placement or reflow
SPI (Solder Paste Inspection)
- checks solder paste before placement
- prevents defects early
Manual Inspection
- flexible but inconsistent
- depends on operator experience
Best practice: combine AOI + SPI for full quality control.
Where to Place AOI in the SMT Line

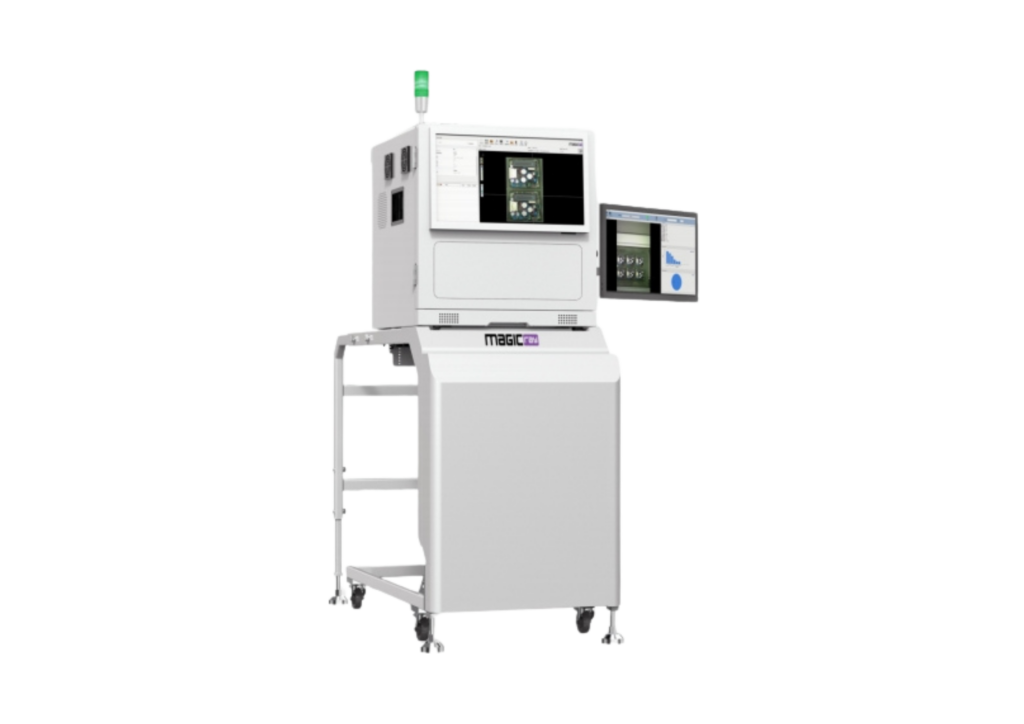

Pre-Reflow AOI
- checks component placement before soldering
- helps correct errors early
Post-Reflow AOI
- inspects final soldering quality
- most commonly used
Inline vs Offline AOI
Inline AOI:
- integrated into production line
- real-time inspection
Offline AOI:
- used for sampling or troubleshooting
Cost Considerations of AOI Systems
AOI machine cost typically ranges:
$20,000 – $100,000+
Factors affecting cost:
- 2D vs 3D system
- inspection speed
- resolution
- software capabilities
- brand and support
Although AOI adds upfront cost, it significantly reduces long-term production losses.
How to Choose the Right AOI System
Consider Your Production Volume
High-volume production requires high-speed AOI systems.
Evaluate PCB Complexity
Fine-pitch components require 3D AOI.
Integration with SMT Line
Ensure compatibility with existing equipment.
Software Capability
Advanced algorithms improve defect detection accuracy.
Supplier Support
Reliable technical support is essential.
Common Mistakes When Using AOI
Over-Reliance on AOI
AOI cannot replace proper process control.
Poor Programming
Incorrect settings can lead to false alarms or missed defects.
Ignoring Data Analysis
AOI data should be used for process improvement.
Skipping Maintenance
Dirty lenses or poor calibration reduce accuracy.
Practical Tips for Maximizing AOI Performance
- combine AOI with SPI for better results
- regularly calibrate equipment
- train operators properly
- optimize inspection programs
- analyze defect data continuously
Real-World Application Scenarios
Consumer Electronics
High-speed production requires automated inspection.
Automotive Electronics
Strict quality standards demand advanced AOI systems.
Medical Devices
AOI ensures compliance with safety requirements.
EMS Factories
AOI helps manage multiple product lines efficiently.
Benefits of AOI for SMT Production Lines
- improved product quality
- reduced defect rate
- lower production cost
- increased efficiency
- better process control
AOI is no longer optional — it is essential for competitive PCB manufacturing.
Conclusion
Automatic Optical Inspection (AOI) plays a critical role in modern PCB assembly. It helps manufacturers detect defects early, improve product quality, and optimize production processes.
For companies planning to build or upgrade an SMT production line, investing in AOI is a smart decision that ensures long-term success and reliability.
