The Yamaha YS24 SMT Pick and Place Machine is a high-speed modular placement solution developed to deliver outstanding productivity, placement precision, and long-term reliability for modern electronics manufacturing. As one of Yamaha’s most widely deployed SMT placement platforms, the YS24 combines advanced motion control, intelligent vision technology, and flexible production capability, making it an ideal solution for both high-volume manufacturing and high-mix PCB assembly.
Designed to support a wide variety of electronic components, the Yamaha YS24 efficiently handles everything from miniature passive devices to fine-pitch ICs, QFPs, BGAs, CSPs, and large connectors. Its high-speed rotary placement head and high-resolution vision alignment system ensure exceptional placement accuracy while maintaining consistent production throughput.

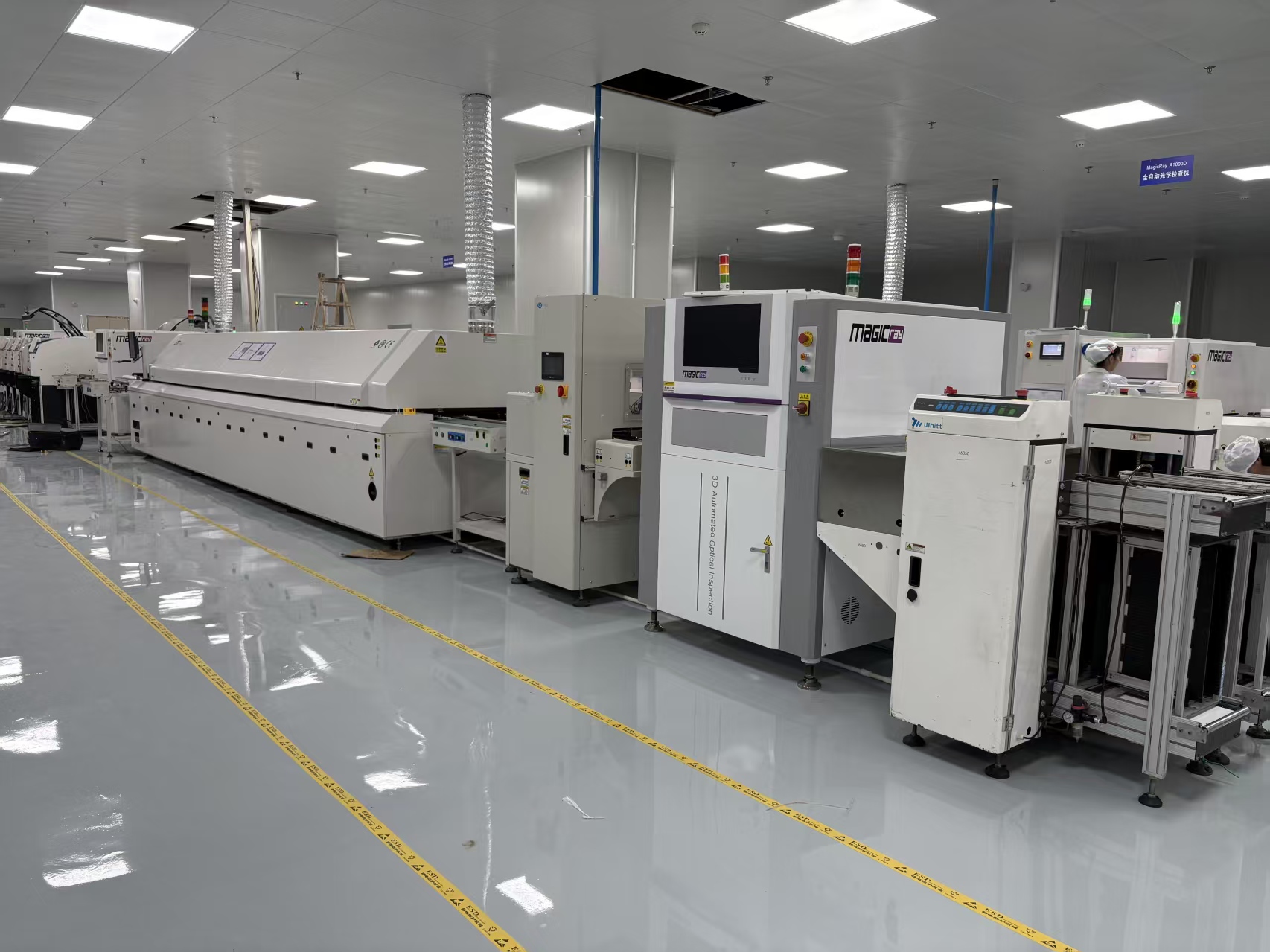

The YS24 is engineered to reduce production downtime through intelligent feeder management and rapid product changeover capabilities. Its modular architecture allows seamless integration with solder paste printers, SPI systems, AOI inspection machines, reflow ovens, conveyors, and Manufacturing Execution Systems (MES), enabling manufacturers to establish fully connected and highly efficient SMT production lines.
Widely adopted across automotive electronics, consumer electronics, industrial automation, telecommunications, medical devices, LED lighting, power electronics, and EMS manufacturing, the Yamaha YS24 offers an excellent balance between speed, flexibility, and operating cost. It is especially suitable for manufacturers seeking dependable SMT equipment with proven performance and low total cost of ownership.
At Fuliu, every Yamaha YS24 machine undergoes a rigorous refurbishment process, including complete cleaning, mechanical inspection, precision calibration, software verification, and comprehensive functional testing. Beyond supplying high-quality refurbished equipment, we provide complete turnkey SMT production line solutions, factory layout planning, installation, commissioning, operator training, spare parts supply, and long-term technical support to help customers achieve maximum productivity and return on investment.
Features
- High-speed rotary placement technology
- Excellent placement accuracy for complex PCB assembly
- Intelligent digital vision alignment
- Wide component compatibility
- Fast feeder replacement and setup
- Modular production line integration
- Stable 24/7 continuous operation
- User-friendly programming interface
- Low maintenance requirements
- High equipment reliability
Benefits
The Yamaha YS24 helps manufacturers increase production efficiency while maintaining excellent product quality.
Its intelligent feeder management minimizes setup time and supports rapid product changeovers, allowing factories to respond quickly to changing production schedules. High placement accuracy reduces defects and rework, while stable machine performance lowers maintenance costs and improves Overall Equipment Effectiveness (OEE).
Whether producing consumer electronics or automotive PCBs, the YS24 offers manufacturers a dependable solution with long-term operational value.
Applications
The Yamaha YS24 is ideal for:
- Automotive Electronics
- Consumer Electronics
- Industrial Automation
- Medical Electronics
- Telecommunications Equipment
- LED Lighting
- Power Electronics
- Smart Home Devices
- Renewable Energy Electronics
- EMS Contract Manufacturing
Advantages
- Proven Yamaha placement technology
- High-speed PCB assembly
- Excellent placement precision
- Flexible component compatibility
- Fast product changeovers
- Low operating costs
- Stable production performance
- Easy maintenance
- Long service life
- Excellent return on investment
Fuliu provides reliable SMT equipment and complete PCB assembly solutions for manufacturers worldwide.
Our Yamaha YS24 services include:
- Professional refurbishment
- Precision inspection and calibration
- Factory Acceptance Testing (FAT)
- Turnkey SMT production line integration
- Factory layout planning
- Installation and commissioning
- Operator training
- Worldwide logistics support
- Spare parts supply
- Lifetime technical assistance
Frequently Asked Questions
The YS24 is ideal for both high-volume production and high-mix manufacturing across automotive, consumer electronics, industrial control, and EMS industries.
It supports components from miniature passive chips to fine-pitch ICs, BGAs, CSPs, QFPs, and large connectors.
Yes. Its intelligent feeder management and rapid changeover capabilities make it highly suitable for flexible production environments.
Yes. Every refurbished machine undergoes professional inspection, calibration, software verification, and functional testing before shipment.
Absolutely. It integrates with solder paste printers, SPI systems, AOI machines, reflow ovens, conveyors, and MES platforms.
Yes. Fuliu supplies Yamaha feeders, nozzles, spare parts, maintenance kits, and technical support.
Yes. We design customized turnkey SMT production lines based on your PCB products, production volume, and factory layout.
We provide installation, commissioning, operator training, remote support, preventive maintenance, spare parts supply, and long-term engineering services.
