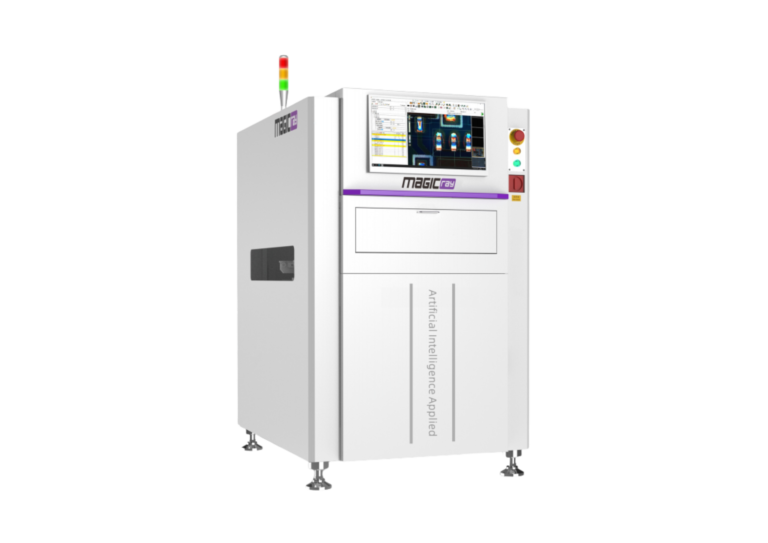

The MagicRay A1000 Series AOI (Automated Optical Inspection) Machine is an advanced inline inspection solution designed to deliver fast, intelligent, and highly accurate PCB inspection throughout modern SMT manufacturing environments. Developed for high-volume electronics production as well as high-mix manufacturing, the A1000 Series combines high-resolution industrial imaging, AI-assisted defect recognition, intelligent software algorithms, and precision motion control to maximize product quality while reducing production costs.
Installed after the reflow soldering process, the MagicRay A1000 automatically inspects every assembled PCB for a comprehensive range of manufacturing defects. It accurately detects missing components, incorrect parts, polarity errors, component offset, lifted leads, tombstones, solder bridges, insufficient solder, excessive solder, poor solder joints, and various assembly defects before products proceed to functional testing or shipment.
Powered by intelligent image processing and adaptive inspection algorithms, the A1000 minimizes false calls while maintaining outstanding defect detection capability. Its flexible programming platform allows engineers to rapidly create new inspection programs using CAD/Gerber data or manual programming, significantly reducing new product introduction (NPI) time.
Designed for Industry 4.0 smart manufacturing, the A1000 integrates seamlessly with MES systems, barcode traceability, SPC statistical analysis, and factory-wide quality management platforms. Real-time inspection data enables process optimization, continuous quality improvement, and faster root cause analysis.
Built on a high-rigidity mechanical platform with precision servo motion control, the A1000 provides stable, repeatable inspection performance during continuous 24/7 operation. The system supports multiple PCB sizes, component packages, and production requirements, making it an ideal inspection solution for EMS providers, automotive electronics manufacturers, medical device producers, industrial automation companies, telecommunications equipment manufacturers, and consumer electronics factories.
Every MagicRay A1000 AOI machine supplied by Fuliu undergoes professional installation, calibration, validation, software configuration, operator training, and production testing. Fuliu also provides complete turnkey SMT production line integration, preventive maintenance, spare parts support, and lifetime technical assistance to ensure maximum equipment performance and long-term production reliability.
Features
- High-speed inline AOI inspection
- High-resolution industrial imaging system
- AI-assisted defect recognition algorithms
- Intelligent automatic fiducial positioning
- CAD/Gerber-assisted programming
- Low false-call inspection technology
- Automatic barcode traceability
- SPC statistical quality analysis
- Flexible inspection recipe management
- Full MES and Industry 4.0 compatibility
Benefits
Detect assembly defects before functional testing.
Improve first-pass yield (FPY) across SMT production lines.
Reduce manual visual inspection and labor costs.
Minimize expensive rework and field failures.
Accelerate product changeovers with simplified programming.
Improve manufacturing consistency across multiple production lines.
Enhance quality traceability through barcode and MES integration.
Optimize production processes using real-time SPC analysis.
Lower manufacturing costs by preventing defective products from advancing.
Support continuous quality improvement and smart factory initiatives.
Applications
The MagicRay A1000 Series is widely used in:
- Consumer Electronics
- Automotive Electronics
- Medical Devices
- Industrial Automation
- Telecommunications Equipment
- LED Lighting
- Aerospace Electronics
- New Energy Products
- Power Electronics
- EMS Contract Manufacturing
Advantages
- High-speed inline inspection capability
- Excellent inspection accuracy
- Intelligent AI defect recognition
- Fast programming and product switching
- Low false alarm rate
- Stable long-term operation
- Powerful SPC process analytics
- Smart factory compatibility
- Easy operation and maintenance
- Excellent return on investment
Fuliu is a professional supplier of SMT inspection equipment and turnkey PCB assembly production line solutions with extensive experience serving global electronics manufacturers.
Our services include:
- Complete SMT production line planning
- AOI equipment selection consultation
- Factory layout optimization
- Installation and commissioning
- Software configuration
- Operator training
- Preventive maintenance
- Spare parts supply
- Worldwide logistics
- Lifetime technical support
Frequently Asked Questions
The A1000 is an inline Automated Optical Inspection system designed to inspect PCB assemblies after reflow soldering and identify assembly defects before functional testing.
It detects missing components, polarity errors, wrong parts, component offset, tombstones, solder bridges, lifted leads, insufficient solder, excessive solder, and various solder joint defects.
Yes. The system is designed for continuous inline operation and supports both high-volume and high-mix electronics manufacturing environments.
Yes. Intelligent AI-assisted algorithms improve inspection accuracy while minimizing false alarms and simplifying programming.
Yes. The A1000 supports barcode traceability, MES integration, SPC analysis, and Industry 4.0 smart factory communication.
It is widely used in automotive electronics, medical devices, consumer electronics, industrial automation, telecommunications, LED manufacturing, and EMS production.
Yes. The system supports SMEMA communication and integrates with SPI systems, pick-and-place machines, reflow ovens, conveyors, ICT testers, AXI systems, and MES platforms.
What support does Fuliu provide?
Fuliu provides equipment consultation, installation, commissioning, operator training, preventive maintenance, spare parts support, software optimization, and lifetime technical service.
Parts & Consumables
High-quality SMT spare parts and consumables for reliable and efficient production.
