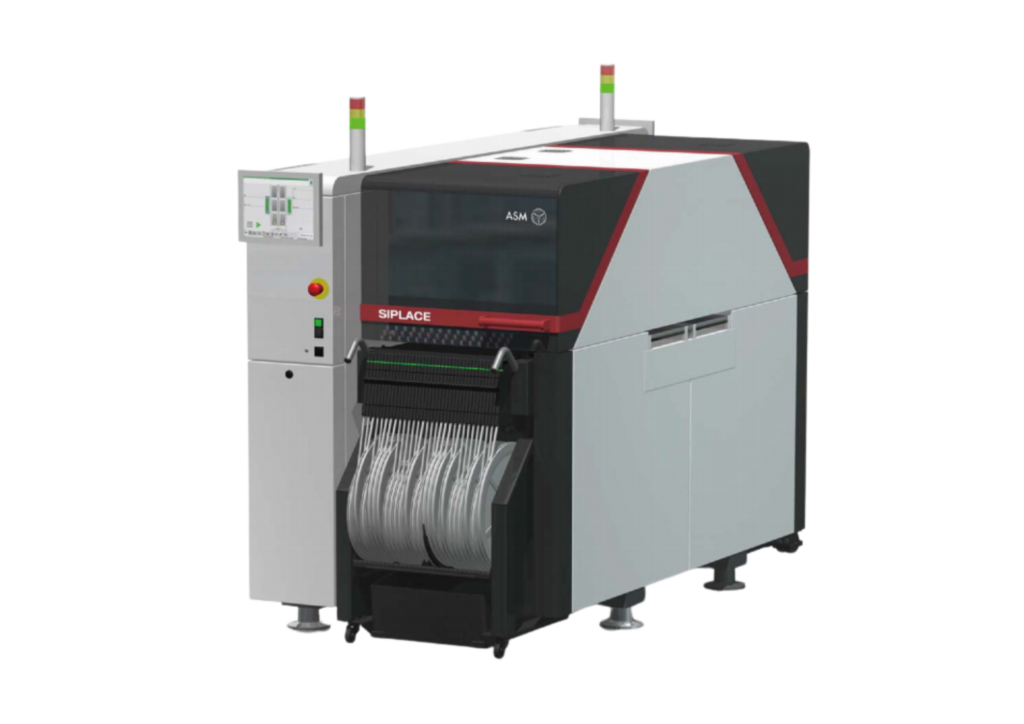

The ASM SIPLACE TX Series SMT Pick and Place Machines represent the latest generation of intelligent modular placement solutions developed for modern electronics manufacturing. Combining exceptional placement speed, outstanding precision, flexible scalability, and Industry 4.0 connectivity, the TX Series is engineered to help manufacturers maximize productivity while maintaining superior product quality.
Designed for demanding SMT production environments, the TX Series supports everything from high-volume consumer electronics to automotive electronics, industrial automation, telecommunications, medical devices, aerospace systems, and new energy products. Whether producing millions of identical assemblies or handling high-mix, low-volume manufacturing, the TX platform delivers reliable and repeatable placement performance.
ASM’s advanced placement technology enables the TX Series to mount components ranging from ultra-small 01005 (metric 0402) chips to fine-pitch ICs, BGAs, CSPs, QFPs, connectors, LEDs, and complex odd-shaped components. High-speed placement heads, intelligent vision alignment, linear motor technology, and real-time process optimization ensure consistent accuracy even during continuous 24/7 operation.
A key advantage of the SIPLACE TX Series is its fully modular architecture. Manufacturers can configure placement modules according to production requirements and expand line capacity without replacing existing equipment. Intelligent feeder verification, automatic setup optimization, predictive maintenance, and smart production analytics reduce downtime while improving Overall Equipment Effectiveness (OEE).
The TX Series is fully compatible with ASM Works, MES software, barcode traceability systems, AOI, SPI, reflow ovens, and automated material handling equipment, making it an ideal platform for smart factories implementing Industry 4.0 initiatives.
At Fuliu, every ASM SIPLACE TX Series machine is professionally refurbished through complete mechanical restoration, software upgrades, precision calibration, and extensive performance testing. We also provide turnkey SMT production line design, installation, commissioning, operator training, spare parts supply, and lifetime technical support, ensuring customers receive dependable SMT solutions with long-term value.
Features
- Next-generation modular SMT architecture
- Ultra-high placement speed
- High-precision intelligent vision system
- Supports 01005 to large odd-form components
- Intelligent feeder verification
- Automatic setup optimization
- Predictive maintenance functions
- Industry 4.0 smart factory integration
- Flexible production scalability
- Stable 24/7 manufacturing performance
Benefits
The ASM SIPLACE TX Series enables manufacturers to increase throughput while reducing operating costs and improving product quality.
Its intelligent production management minimizes setup errors, shortens changeover time, and enhances machine utilization, allowing factories to respond quickly to changing customer demands. Advanced placement accuracy reduces defects, lowers rework costs, and improves first-pass yield.
With modular scalability and comprehensive smart factory connectivity, the TX Series supports long-term production growth while protecting capital investment.
Applications
The ASM SIPLACE TX Series is ideal for:
- Automotive Electronics
- Electric Vehicle (EV) Electronics
- Consumer Electronics
- Industrial Automation
- Medical Electronics
- Telecommunications Equipment
- Aerospace & Defense Electronics
- LED Lighting
- Renewable Energy Systems
- EMS Contract Manufacturing
Advantages
- Industry-leading placement speed
- Exceptional placement accuracy
- Flexible modular expansion
- Intelligent feeder management
- Reduced production downtime
- Industry 4.0 ready
- Excellent machine stability
- Lower operating costs
- Long equipment lifespan
- Outstanding ROI
Fuliu specializes in refurbished SMT equipment and turnkey PCB assembly solutions for electronics manufacturers worldwide.
Our ASM SIPLACE TX Series services include:
- Professional refurbishment
- Precision calibration
- Factory Acceptance Testing (FAT)
- Turnkey SMT production line design
- Factory layout optimization
- Installation and commissioning
- Operator training
- Worldwide shipping
- Spare parts supply
- Lifetime technical support
Every machine is thoroughly inspected and tested before shipment to ensure reliable production performance.
Frequently Asked Questions
The TX Series is ASM’s advanced modular SMT placement platform designed for high-speed, high-precision PCB assembly and smart manufacturing.
The TX Series includes TX1, TX2, TX2i, TX micron, and other specialized configurations for different production requirements.
The machines support components ranging from 01005 chips to BGAs, CSPs, QFPs, LEDs, connectors, and large odd-shaped components.
Yes. It integrates with ASM Works, MES software, barcode traceability, production analytics, and predictive maintenance systems.
Yes. All machines undergo comprehensive refurbishment, software verification, precision calibration, and performance testing before delivery.
Absolutely. It is compatible with printers, SPI systems, AOI equipment, reflow ovens, conveyors, and smart factory software.
Yes. We supply ASM intelligent feeders, SMT nozzles, placement heads, maintenance kits, and original or compatible spare parts.
We offer installation, commissioning, operator training, preventive maintenance, remote technical support, spare parts supply, and lifetime engineering assistance.
