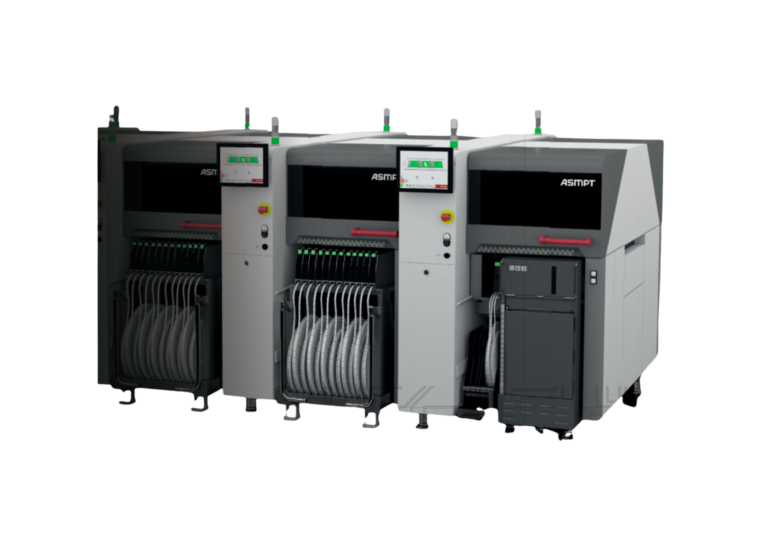

The ASM SIPLACE TX micron SMT Pick and Place Machine is a premium high-precision placement solution designed for electronics manufacturers producing advanced PCB assemblies with extremely small components and demanding quality requirements. As part of the next-generation ASM SIPLACE TX Series, the TX micron combines outstanding placement accuracy, intelligent automation, modular scalability, and Industry 4.0 connectivity to support today’s most sophisticated SMT production environments.
The TX micron is specifically optimized for assembling miniature electronic components, including 01005 (metric 0402), 008004 ultra-small passive components, micro-BGAs, CSPs, QFNs, fine-pitch ICs, LEDs, MEMS devices, sensors, and other high-density packages. Its advanced placement head, high-resolution digital vision system, precision linear motors, and intelligent motion control ensure exceptional repeatability even at high production speeds.
Designed for flexible manufacturing, the TX micron allows manufacturers to balance throughput with placement accuracy. Intelligent feeder verification, automatic setup validation, optimized placement algorithms, and predictive maintenance significantly reduce setup errors, minimize machine downtime, and improve Overall Equipment Effectiveness (OEE).
Fully compatible with ASM Works, MES software, barcode traceability, SPI, AOI, reflow ovens, and automated material handling systems, the TX micron seamlessly integrates into Industry 4.0 smart factories. Real-time production analytics and machine monitoring help manufacturers increase productivity while maintaining strict quality standards.
The ASM SIPLACE TX micron is widely used in automotive electronics, medical devices, semiconductor packaging, industrial automation, telecommunications, aerospace electronics, consumer electronics, wearable devices, optical modules, and high-end EMS manufacturing.
At Fuliu, every ASM SIPLACE TX micron machine undergoes comprehensive refurbishment, precision calibration, software verification, and extensive performance testing before shipment. We also provide turnkey SMT production line design, installation, commissioning, operator training, spare parts, and lifetime technical support to ensure reliable long-term production performance.
Features
- Ultra-high precision placement technology
- Supports 008004 and 01005 miniature components
- Intelligent digital vision alignment
- High-speed precision placement head
- Modular platform for flexible production
- Intelligent feeder verification
- Automatic setup optimization
- Predictive maintenance system
- Industry 4.0 smart factory integration
- Stable 24/7 production capability
Benefits
The ASM SIPLACE TX micron enables manufacturers to achieve exceptional placement accuracy for next-generation electronic products while maintaining high production efficiency.
Its intelligent setup verification reduces human error and shortens changeover time, while advanced placement technology minimizes defects and improves first-pass yield. Manufacturers benefit from lower production costs, higher equipment utilization, and greater flexibility for handling complex PCB assemblies.
The modular architecture also protects long-term investments by allowing production capacity to expand alongside future business growth.
Applications
The ASM SIPLACE TX micron is ideal for:
- Automotive Electronics
- ADAS & Autonomous Driving Systems
- Medical Devices
- Wearable Electronics
- 5G Communication Equipment
- Industrial Automation
- Aerospace Electronics
- Semiconductor Packaging
- Optical Communication Modules
- High-End EMS Manufacturing
Advantages
- Ultra-high placement accuracy
- Supports ultra-miniature components
- High-speed production capability
- Modular production expansion
- Intelligent feeder management
- Industry 4.0 ready
- Reduced production downtime
- Excellent machine stability
- Long equipment lifespan
- Outstanding return on investment
uliu provides professional refurbished SMT equipment and complete PCB assembly solutions for global electronics manufacturers.
Our ASM SIPLACE TX micron services include:
- Professional refurbishment
- Precision calibration
- Factory Acceptance Testing (FAT)
- Turnkey SMT production line design
- Factory layout optimization
- Installation and commissioning
- Operator training
- Worldwide logistics
- Spare parts supply
- Lifetime technical support
Every machine is fully inspected and tested before shipment to ensure dependable production performance and maximum customer satisfaction.
Frequently Asked Questions
The TX micron is optimized for ultra-high precision placement, making it ideal for assembling miniature components and high-density PCB designs.
Depending on the installed configuration, the TX micron can place components as small as 008004 and 01005.
It is widely used in automotive electronics, medical devices, semiconductor packaging, aerospace, telecommunications, and wearable electronics.
Yes. It supports ASM Works, MES software, barcode traceability, predictive maintenance, and real-time production monitoring.
Yes. Every machine is professionally refurbished, calibrated, software-tested, and fully inspected before shipment.
Absolutely. It integrates seamlessly with solder paste printers, SPI systems, AOI equipment, reflow ovens, conveyors, and MES software. compatible spare parts.
Yes. We supply ASM intelligent feeders, precision nozzles, placement heads, maintenance kits, and original or compatible spare parts.
We provide installation, commissioning, operator training, preventive maintenance, remote technical support, spare parts supply, and lifetime engineering assistance.
