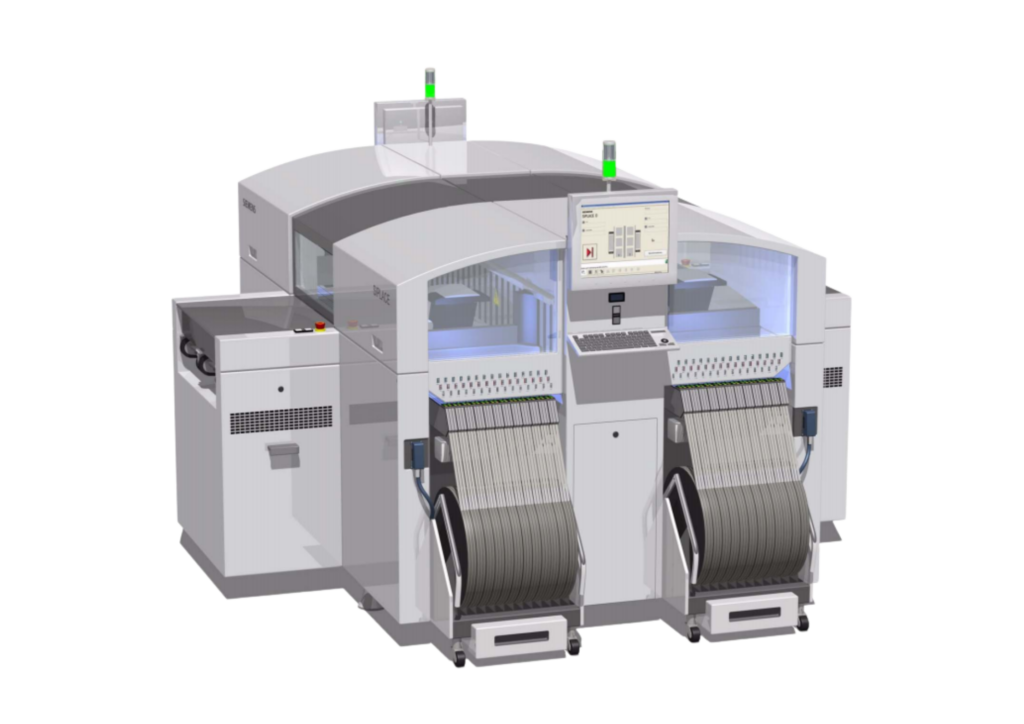

The ASM SIPLACE D4 SMT Pick and Place Machine is a next-generation modular placement system developed for manufacturers seeking maximum throughput, exceptional placement accuracy, and intelligent production management. As one of the highest-capacity models in the ASM SIPLACE D Series, the D4 is engineered to support continuous, high-volume PCB assembly while maintaining the flexibility required for modern mixed-product manufacturing.
Powered by ASM’s advanced placement technology, the SIPLACE D4 efficiently processes a wide variety of electronic components, including 01005 passive devices, CSPs, BGAs, QFPs, micro-BGAs, LEDs, connectors, and odd-shaped components. Its high-performance MultiStar placement head, precision linear drive system, and intelligent digital vision platform ensure stable, repeatable placement even at extremely high production speeds.
The D4 features ASM’s modular architecture, enabling manufacturers to expand production capacity by adding placement modules without redesigning the entire SMT line. Intelligent feeder verification, automatic setup validation, component traceability, and optimized placement algorithms significantly reduce changeover time, improve first-pass yield, and maximize Overall Equipment Effectiveness (OEE).
Built for Industry 4.0, the SIPLACE D4 integrates seamlessly with solder paste printers, SPI systems, AOI inspection equipment, reflow ovens, conveyors, MES software, barcode traceability systems, and ASM Works factory management software. Advanced production analytics, predictive maintenance, and remote diagnostics help manufacturers improve equipment utilization while reducing maintenance costs and unexpected downtime.
The ASM SIPLACE D4 is widely used in automotive electronics, EV battery control systems, industrial automation, telecommunications, medical electronics, aerospace, renewable energy, LED manufacturing, and EMS contract manufacturing.

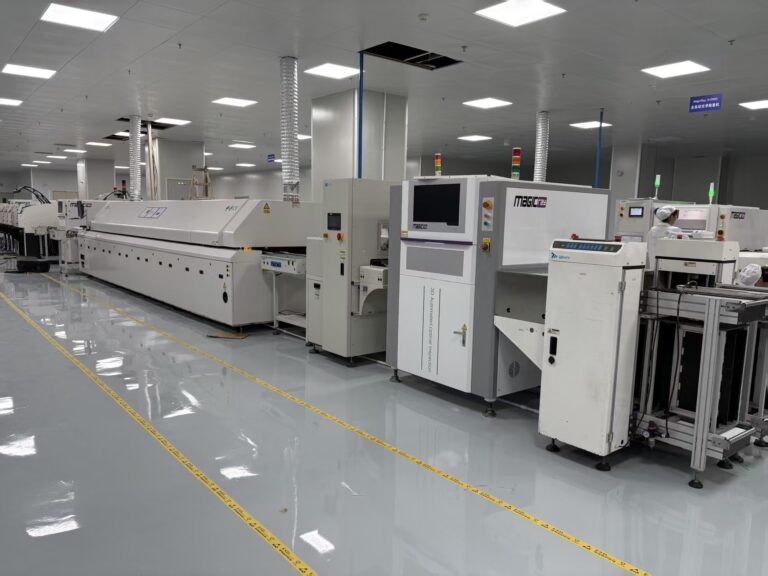

At Fuliu, every ASM SIPLACE D4 machine is professionally refurbished through a comprehensive process that includes deep cleaning, mechanical restoration, precision calibration, software upgrades, and long-duration functional testing. We also provide turnkey SMT production line design, factory layout planning, installation, commissioning, operator training, spare parts supply, and lifetime technical support to help customers maximize productivity and long-term equipment reliability.
Features
- Ultra-high-speed modular placement platform
- ASM MultiStar intelligent placement head
- High-resolution digital vision alignment
- Supports components from 01005 chips to large odd-form devices
- Intelligent feeder verification and automatic setup validation
- Rapid product changeover for mixed-model production
- Predictive maintenance and intelligent diagnostics
- Full Industry 4.0 and ASM Works integration
- Modular architecture for scalable manufacturing
- Stable 24/7 continuous production performance
Benefits
The ASM SIPLACE D4 helps electronics manufacturers maximize production output while maintaining industry-leading placement quality.
Its intelligent feeder verification minimizes setup errors, reduces operator intervention, and shortens product changeovers, allowing factories to respond quickly to fluctuating production demands. High placement accuracy improves first-pass yield, lowers rework rates, and reduces material waste.
With smart factory connectivity, predictive maintenance, and modular scalability, the D4 enables manufacturers to reduce operating costs, improve production transparency, and protect long-term equipment investments.
Applications
The ASM SIPLACE D4 is suitable for:
- Automotive Electronics
- Electric Vehicle (EV) Electronics
- Consumer Electronics
- Industrial Automation
- Medical Devices
- Telecommunications Equipment
- Aerospace Electronics
- Renewable Energy Electronics
- LED Lighting
- EMS Contract Manufacturing
Advantages
- Ultra-high production capacity
- Industry-leading placement accuracy
- Flexible modular expansion
- Intelligent feeder verification
- Rapid product changeovers
- Industry 4.0 ready
- Excellent production stability
- Reduced operating costs
- Long equipment lifespan
- Outstanding return on investment
Fuliu is a trusted supplier of refurbished SMT equipment and complete PCB assembly solutions.
Our ASM SIPLACE D4 services include:
- Professional refurbishment and restoration
- Precision calibration and inspection
- Factory Acceptance Testing (FAT)
- Turnkey SMT production line design
- Factory layout optimization
- Installation and commissioning
- Operator training
- Worldwide logistics support
- Spare parts supply
- Lifetime technical assistance
With years of experience serving electronics manufacturers across Europe, Asia, the Americas, and the Middle East, Fuliu delivers reliable SMT solutions that improve efficiency while reducing capital investment.
Frequently Asked Questions
The D4 is designed for high-volume, high-speed, and high-mix PCB assembly in automotive, EMS, industrial automation, telecommunications, and consumer electronics manufacturing.
It supports components ranging from 01005 chips to BGAs, CSPs, QFPs, LEDs, connectors, and large odd-shaped electronic components.
Yes. The machine integrates with ASM Works, MES software, barcode traceability systems, predictive maintenance tools, and smart factory platforms.
Yes. Every machine undergoes complete refurbishment, precision calibration, software verification, and full functional testing before shipment.
Absolutely. It integrates seamlessly with solder paste printers, SPI systems, AOI machines, reflow ovens, conveyors, and automated logistics systems.
Yes. We provide ASM SIPLACE X Feeders, SMT nozzles, placement heads, maintenance kits, and original or compatible spare parts.
Yes. We customize complete SMT production lines based on your products, production capacity, and factory layout requirements.
We offer installation, commissioning, operator training, preventive maintenance, remote technical support, spare parts supply, and lifetime engineering assistance.
